RECT™ ST-36R24-D

RECT-ID:2232

RECT™ ST-36R24-D

RECT-ID: 2232
Ready for shipment in about 4-6 workdays
Express-shipping: start request...

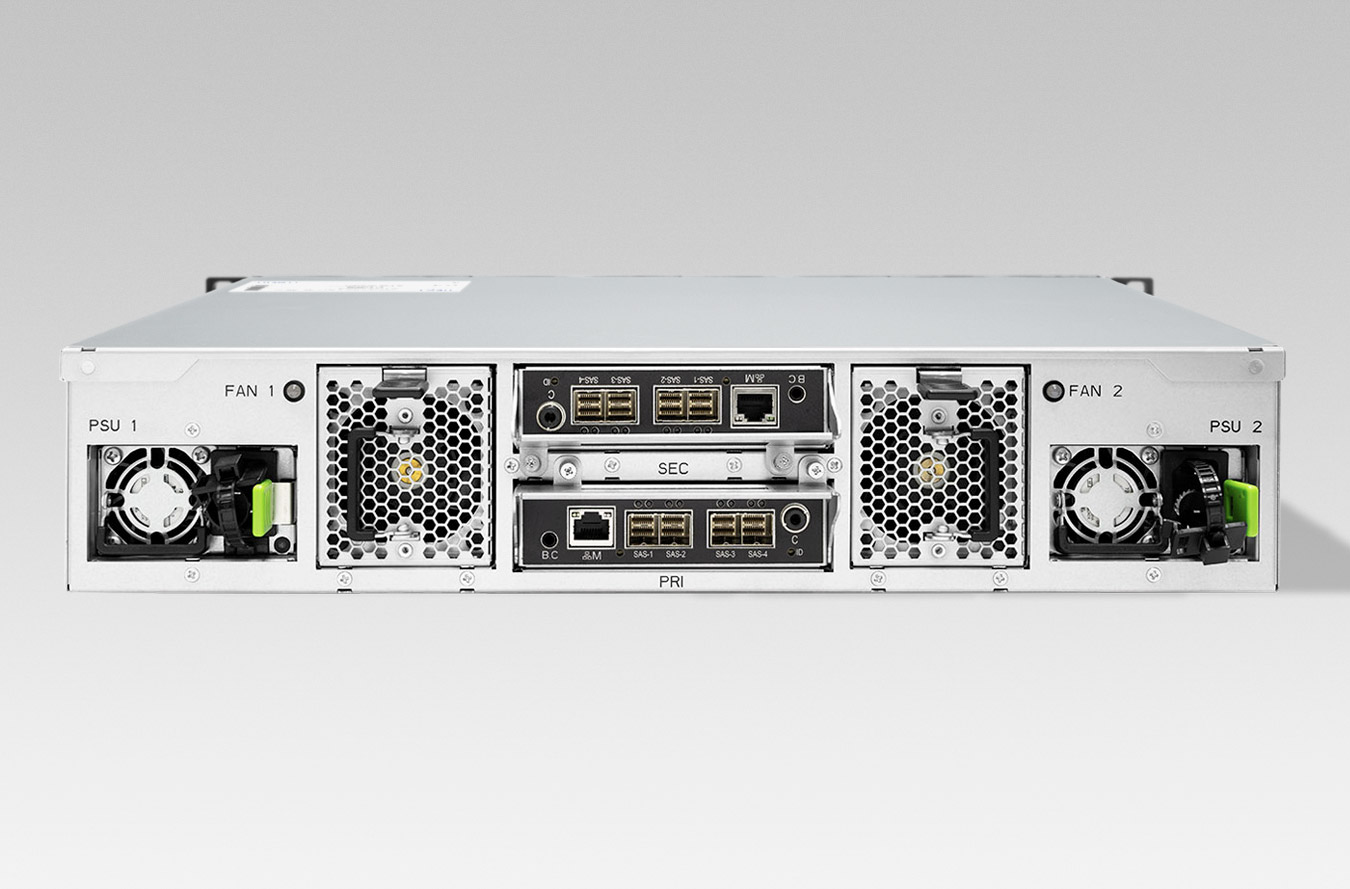

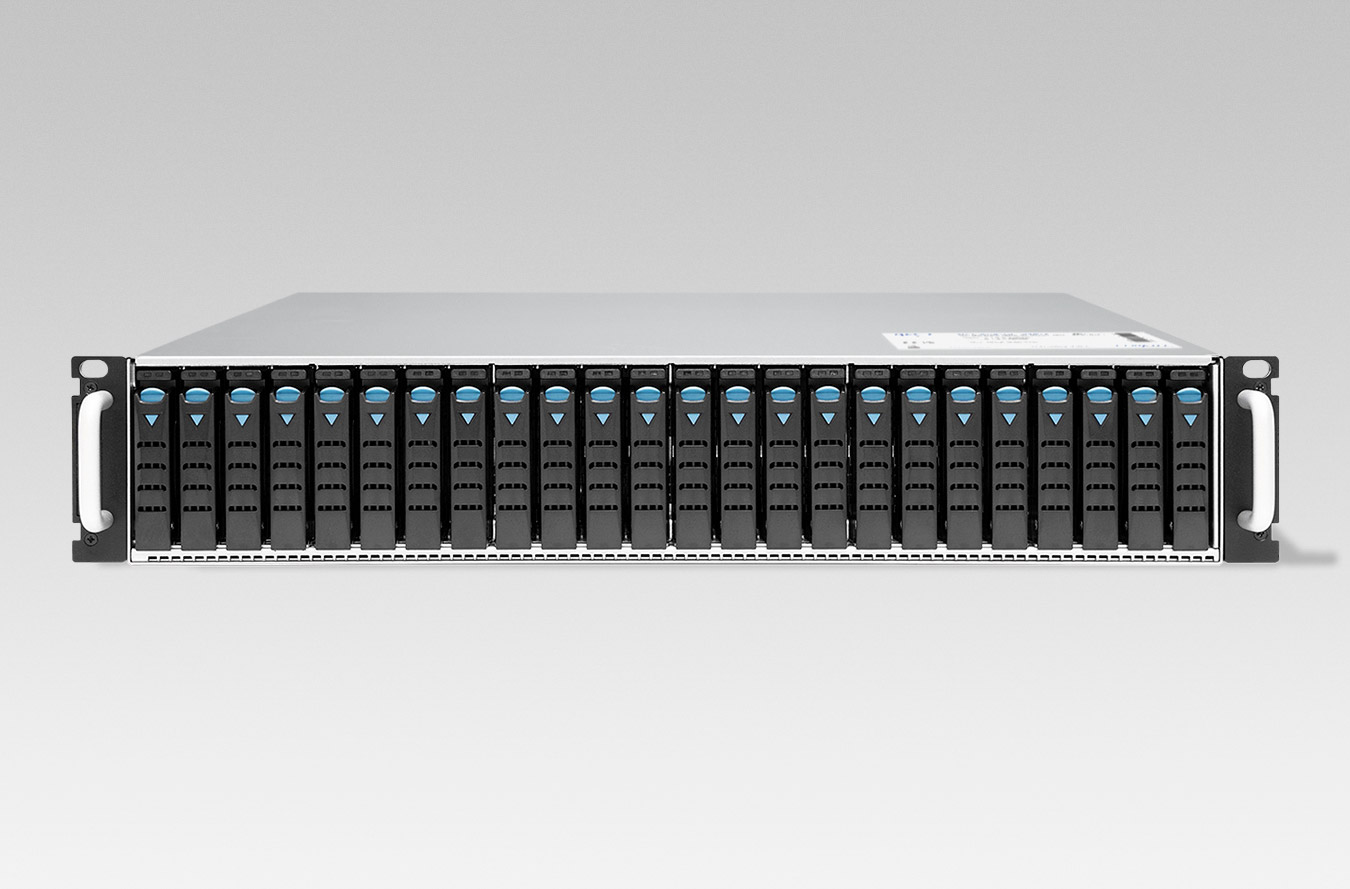

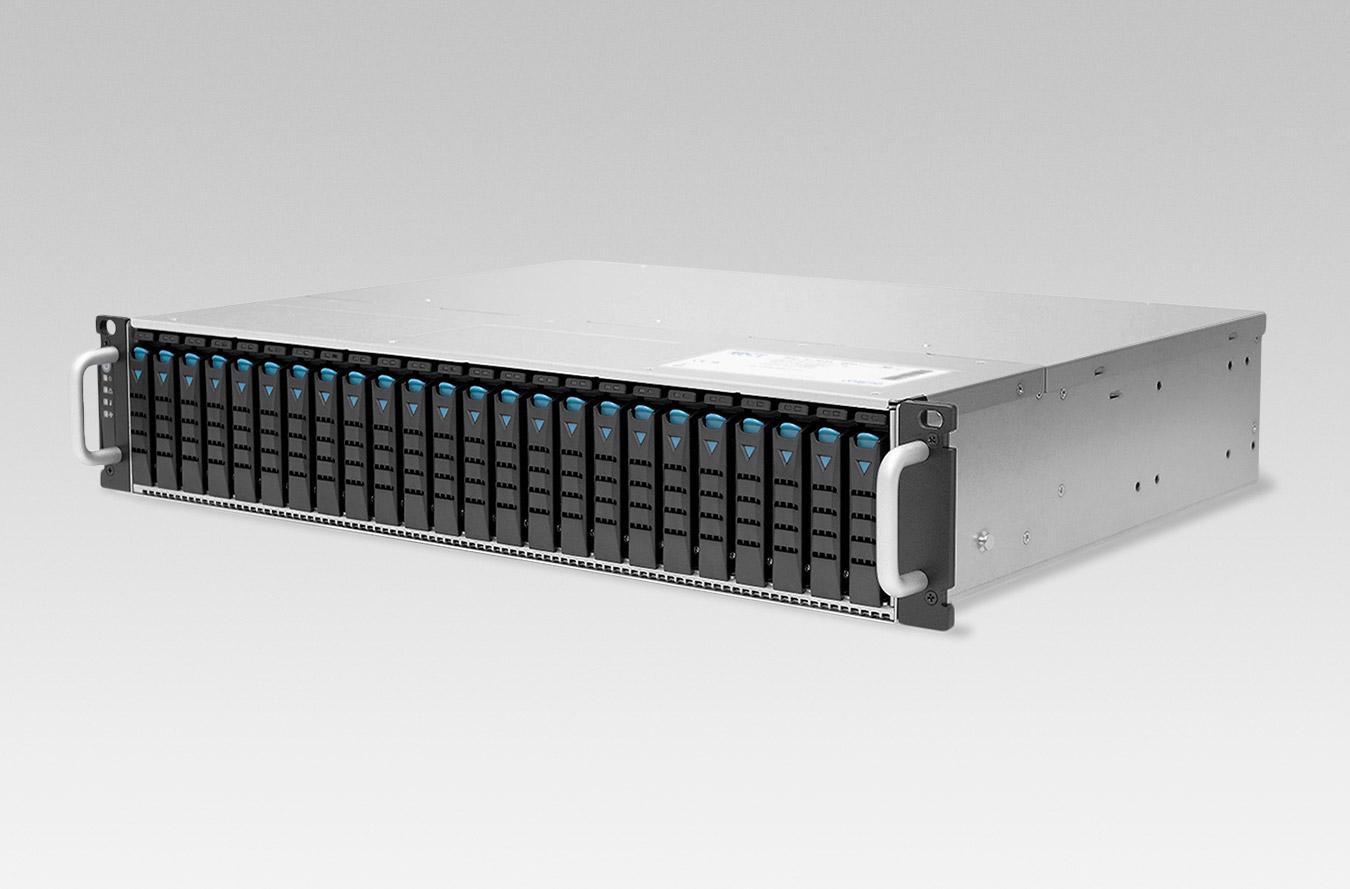

2U DAS-Storage with 2,5" trays

KeyFacts Base System

  • high quality 19" 2U rack storage expansion with 24x 2.5" hot-swap trays for SSD/HDD
  • tool-less hot-swap trays
  • High density, high efficiency and high scalability
  • 12 Gb/s SAS Backplane with single expander controller
  • support Zoning up to 3 hosts
  • up to 730 TB SAS or S-ATA HDD storage
  • connection via SAS3-Interface (SFF-8644)
  • Remote Management Interface (IPMI 2.0)
  • extra short (only 386 mm deep), high-quality
    19" 2U rack chassis
  • 2fold redundant 800W power supply
    (hot-swap) 80Plus Titanium certified
  • Easy-mount slide rails (tool-less)

2U DAS-Storage with 2,5" trays

KeyFacts Base System

  • high quality 19" 2U rack storage expansion with 24x 2.5" hot-swap trays for SSD/HDD
  • tool-less hot-swap trays
  • High density, high efficiency and high scalability
  • 12 Gb/s SAS Backplane with single expander controller
  • support Zoning up to 3 hosts
  • up to 730 TB SAS or S-ATA HDD storage
  • connection via SAS3-Interface (SFF-8644)
  • Remote Management Interface (IPMI 2.0)
  • extra short (only 386 mm deep), high-quality
    19" 2U rack chassis
  • 2fold redundant 800W power supply
    (hot-swap) 80Plus Titanium certified
  • Easy-mount slide rails (tool-less)
Configuration
Basic configuration

Well priced: Please reset the configuration to have the basic configuration.

Recommended configuration

Choose the CORETOs recommended configuration.

Loading...

Basic system


Remote Management Interface on Board

IPMI 2.0, KVM over LAN, Virtual Media over LAN, Remote Power on/off and Reset, Remote Hardware Monitoring, Embedded Web-Server


Drives

24 in hot-swap trays

    Details
    • Enterprise SAS HDD
    Details
    • Enterprise SSDs with optimized performance for read-intensive applications
    • Enterprise SSDs with optimized performance for read and write intensive applications (Mixed-Use)
    • Need more?   show more options
      Too much?   show less options
    Details
    • Enterprise SSDs with optimized performance for read-intensive applications
      (ERP, CRM, Data Warehouse, File Server, Database Analytics, Video Streaming)
    • Enterprise SSDs with optimized performance for read and write intensive applications (Mixed-Use)
      (Databases, OLTP, Financial Transactions, E-Commerce, E-Mail / Messaging, Virtual Environments)
    • Need more?   show more options
      Too much?   show less options

    controller for serverconnection

    Extention for your server to connect the DAS-system

    Details
    • Host-Bus-Adapter (HBA)
      Ideal for Software-Defined-Storage solutions requiring highest bandwidth, lowest latency and highest I/O performance.
      Software-RAID (to be configured and managed within the installed operating system).


    • RAID-Controller
      Ideal for 12 Gbps performance-hungry systems demanding high I/O transaction and high bandwidth processing without compromising maximum data protection.

    Controller Cache Protection

    Short-term data storage to protect data in RAID-Cache in case of power outage.

    RAID configuration



    SAS-cable




    Mounting


    Power supply


    Power Cable









    Service & Support Level

    Location:

    Details
    • Bring-In Warranty
      Technical support: by e-mail, effective support with initial operation (to be carried out within 30 days after delivery).
      Rapairs: components or the whole system will be repaired or replaced subsequently to reshipment, we will pay the costs for transport and logistics within 30 days after delivery.
    • Pick-Up Warranty
      Technical support: by phone and e-mail, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
      Repairs: pick-up and return service for replacement of defective components or the whole system. Components will be replaced in the form of an advanced warranty replacement with guaranteed express delivery.
    • On-Site (3BD) Warranty
      Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
      Repairs: on-site service with guaranteed reaction time within three business days for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.
    • On-Site (NBD) Warranty
      Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
      Repairs: on-site service with guaranteed reaction time within the next business day for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.

    RECT™ ST-36R24-D

    €
    Main configuration
    1,930.00
    Configuration:
    Complete Configuration
    Current price


    Main configuration: 1,930.00 €
    Complete Configuration: 0,00 €
    Current price: 0,00 €   (Plus VAT)
    RECT-ID: 2232
    Last update: 23.11.2024
