RECT™ ST-38xxR24-N

RECT-ID:2250

RECT™ ST-38xxR24-N

RECT-ID: 2250
Ready for shipment in about 3-5 workdays
Express-shipping: start request...

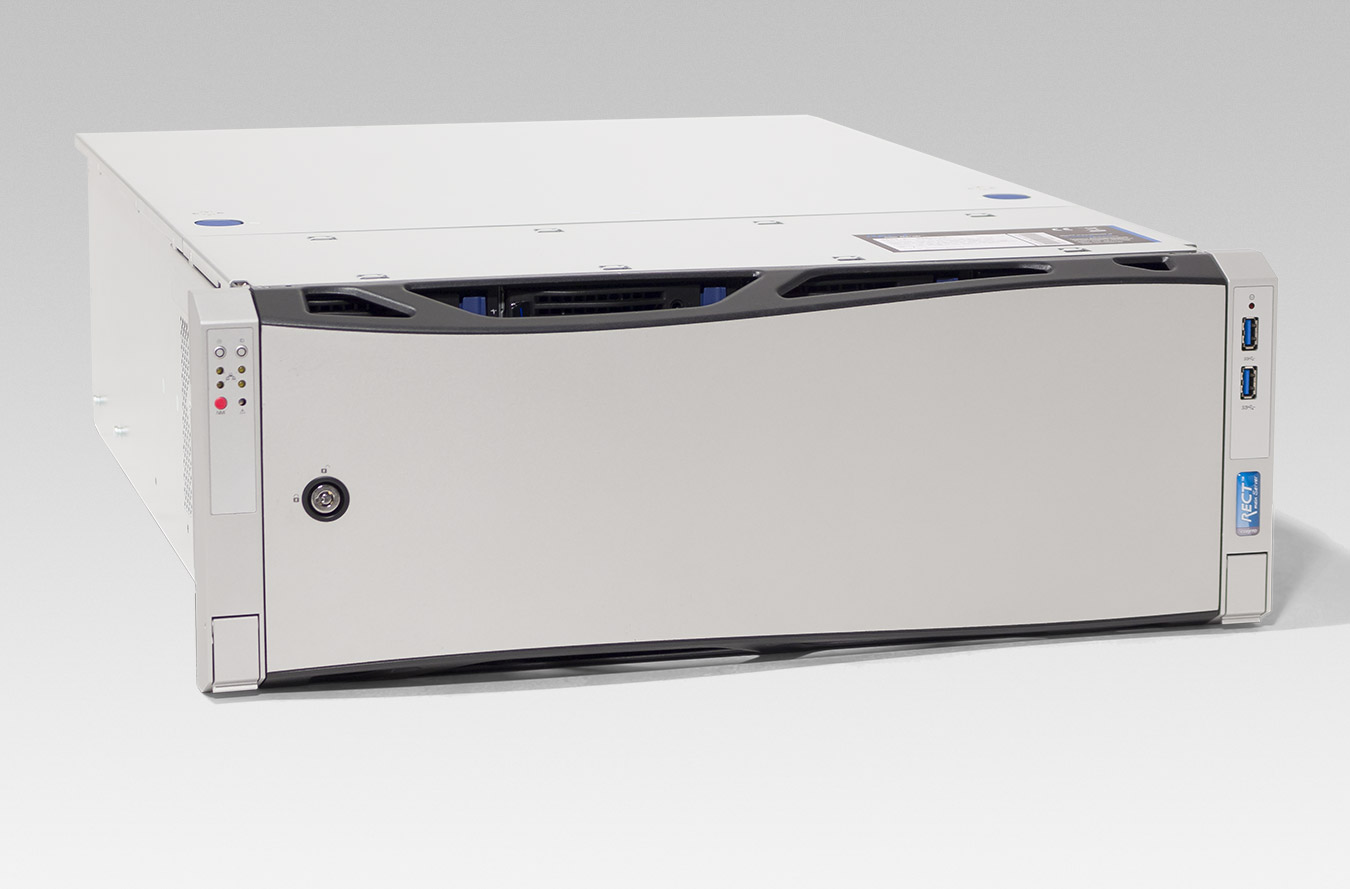

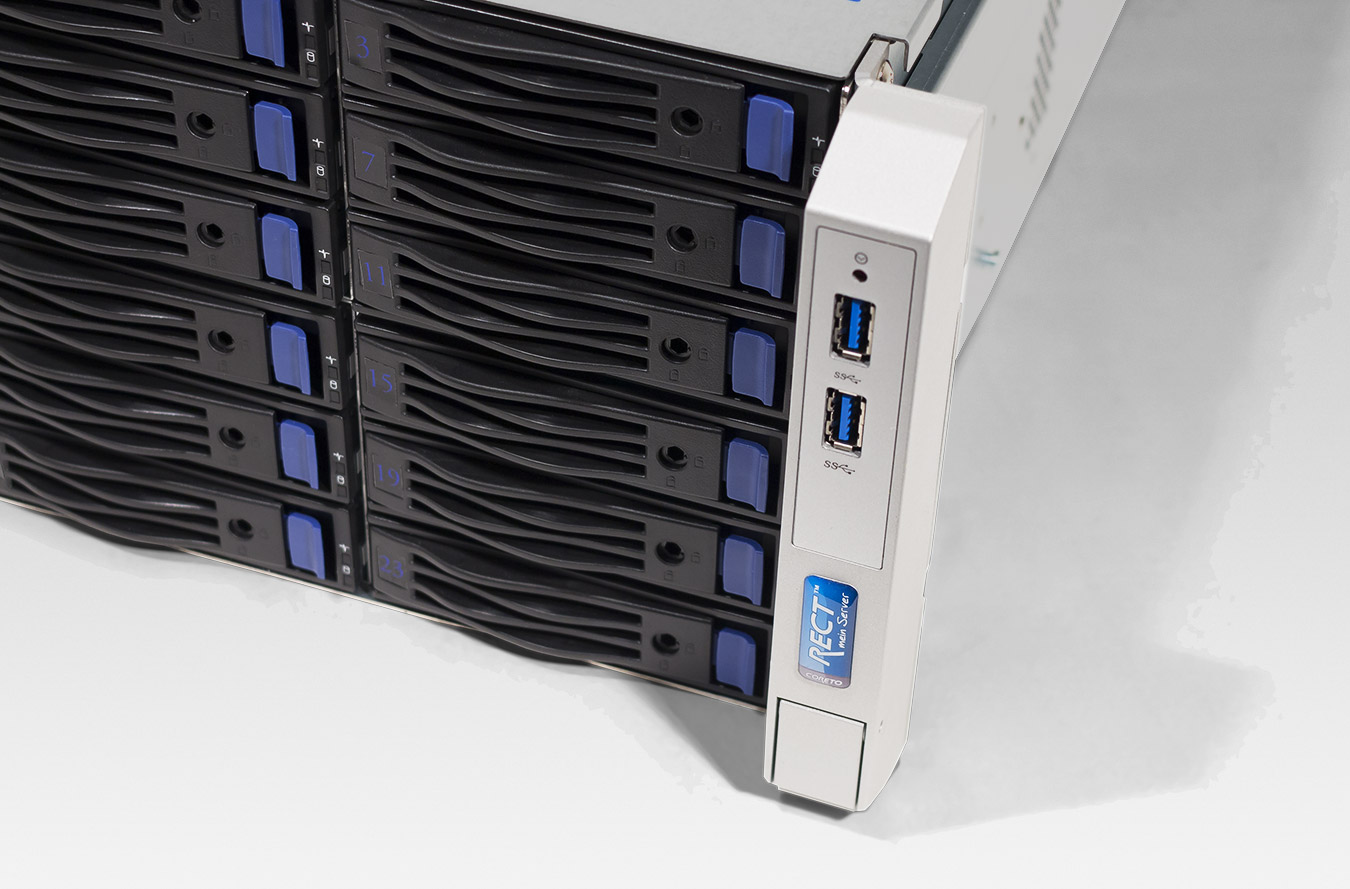

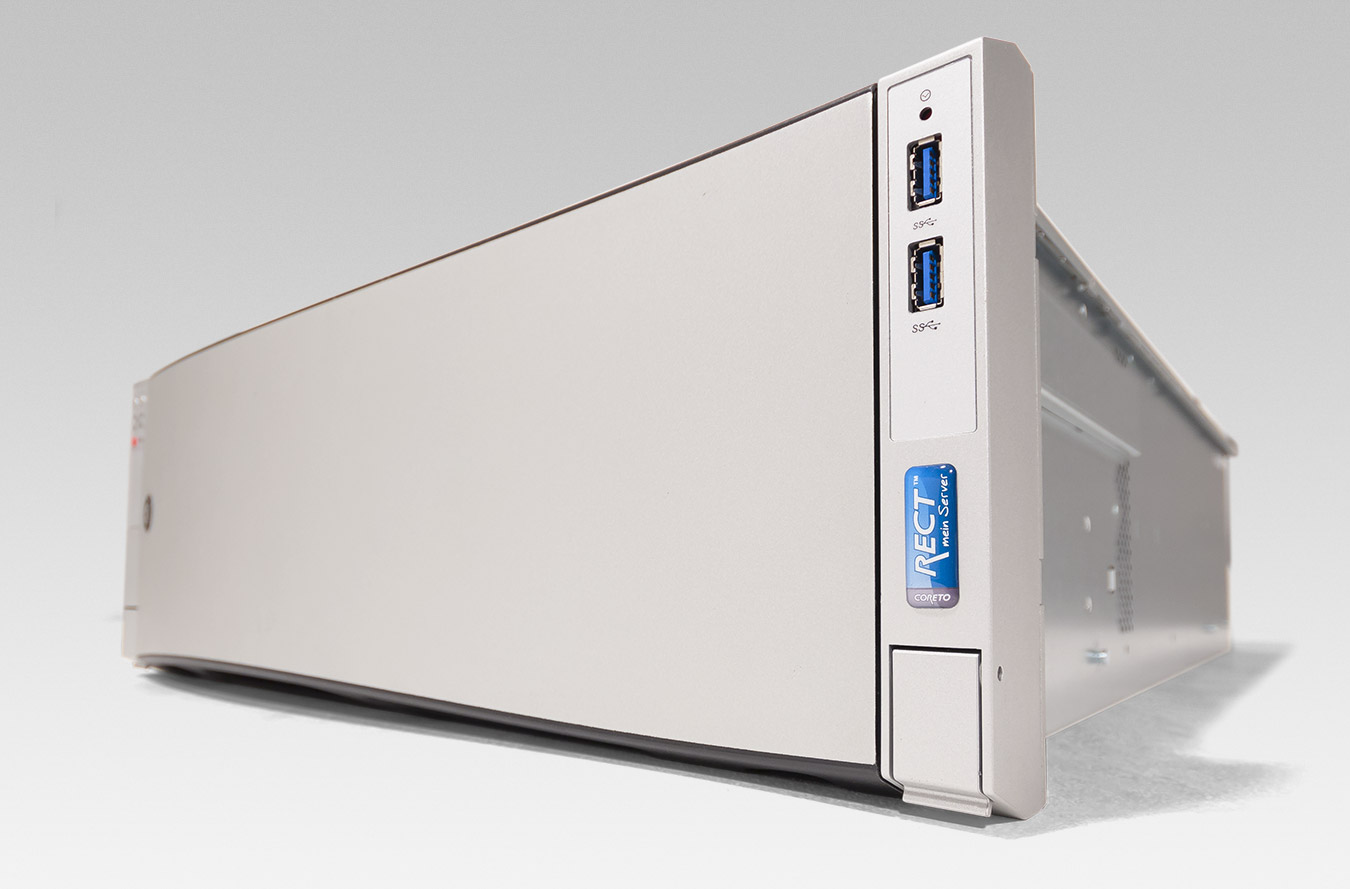

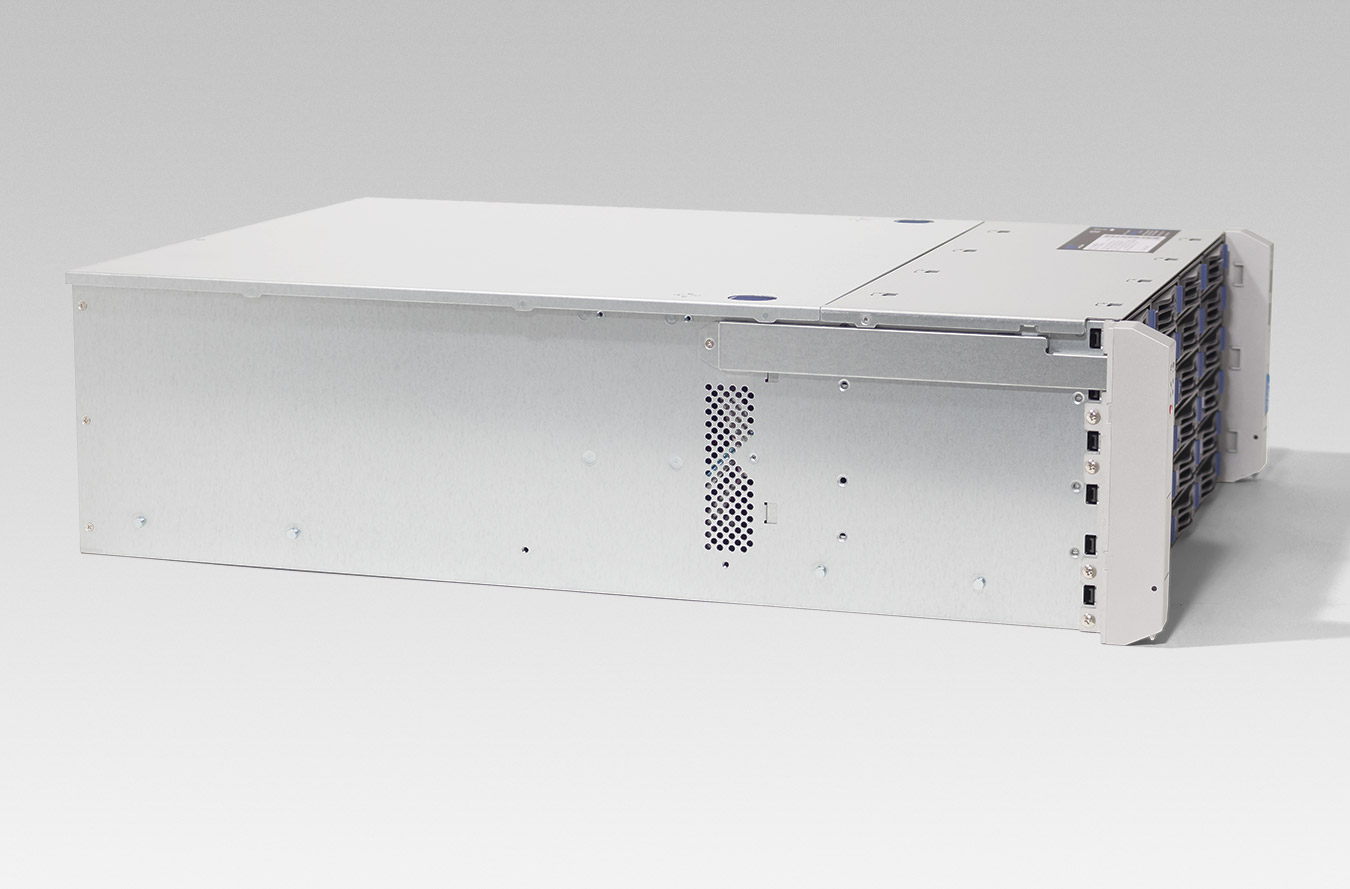

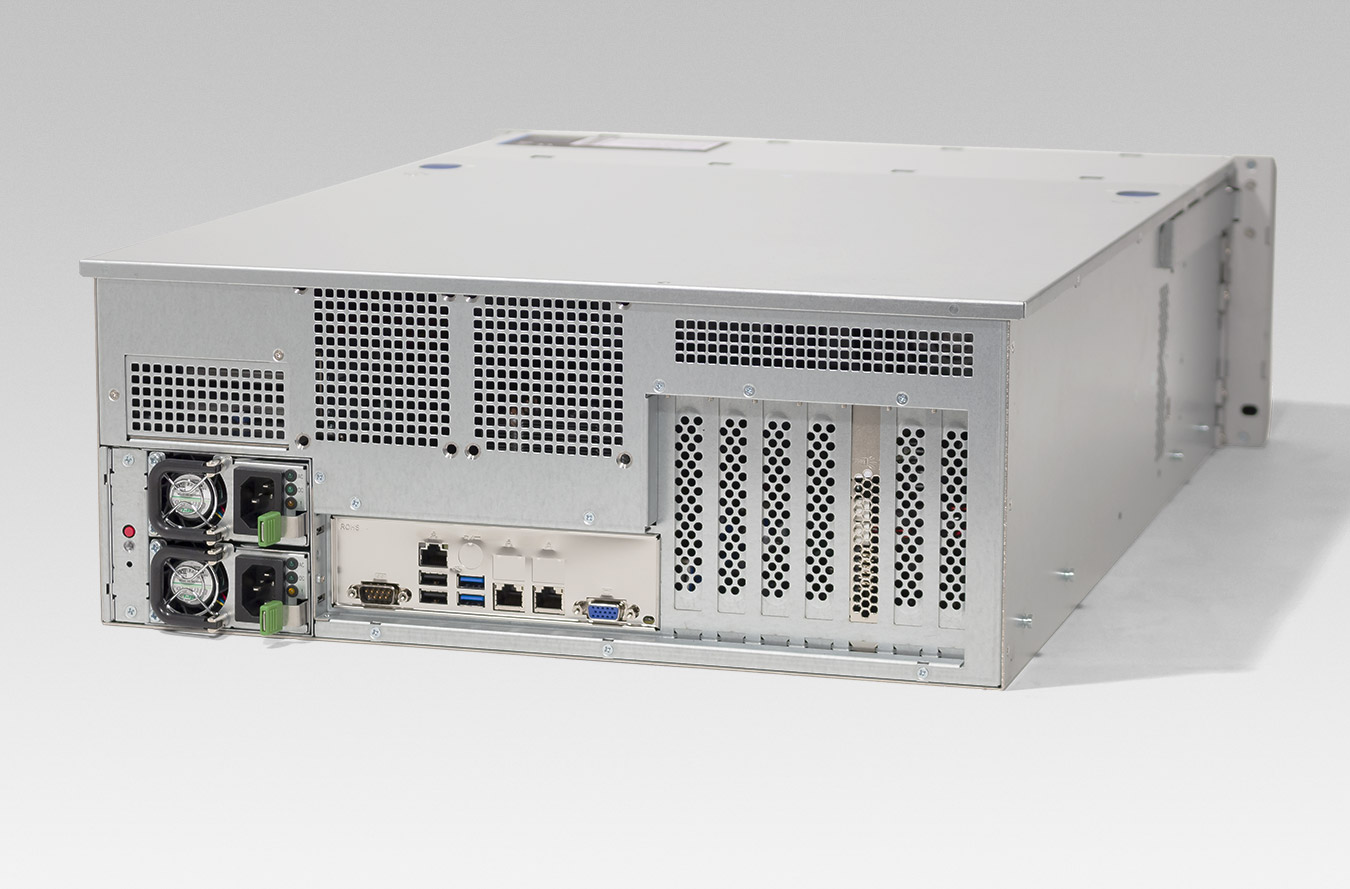

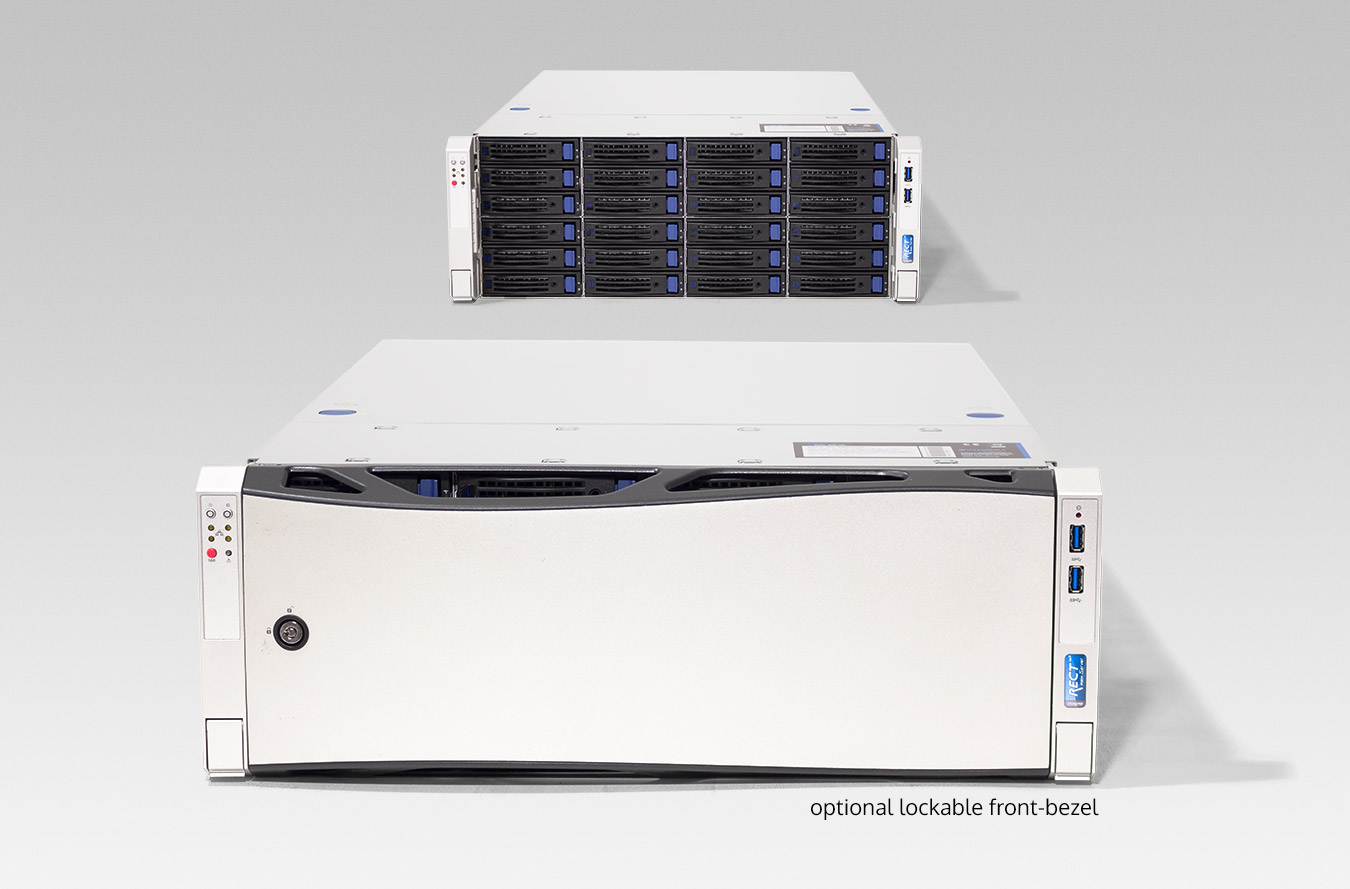

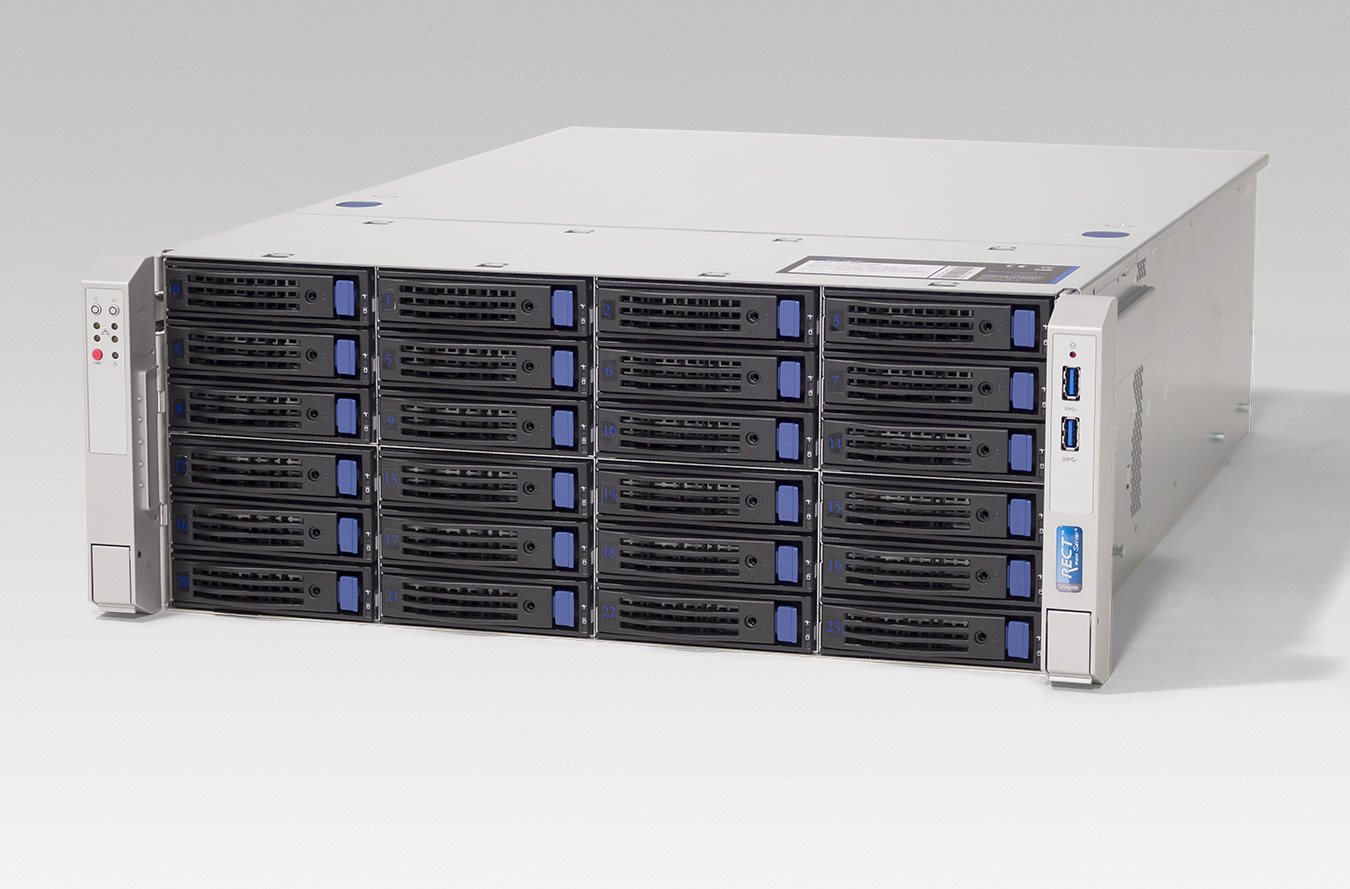

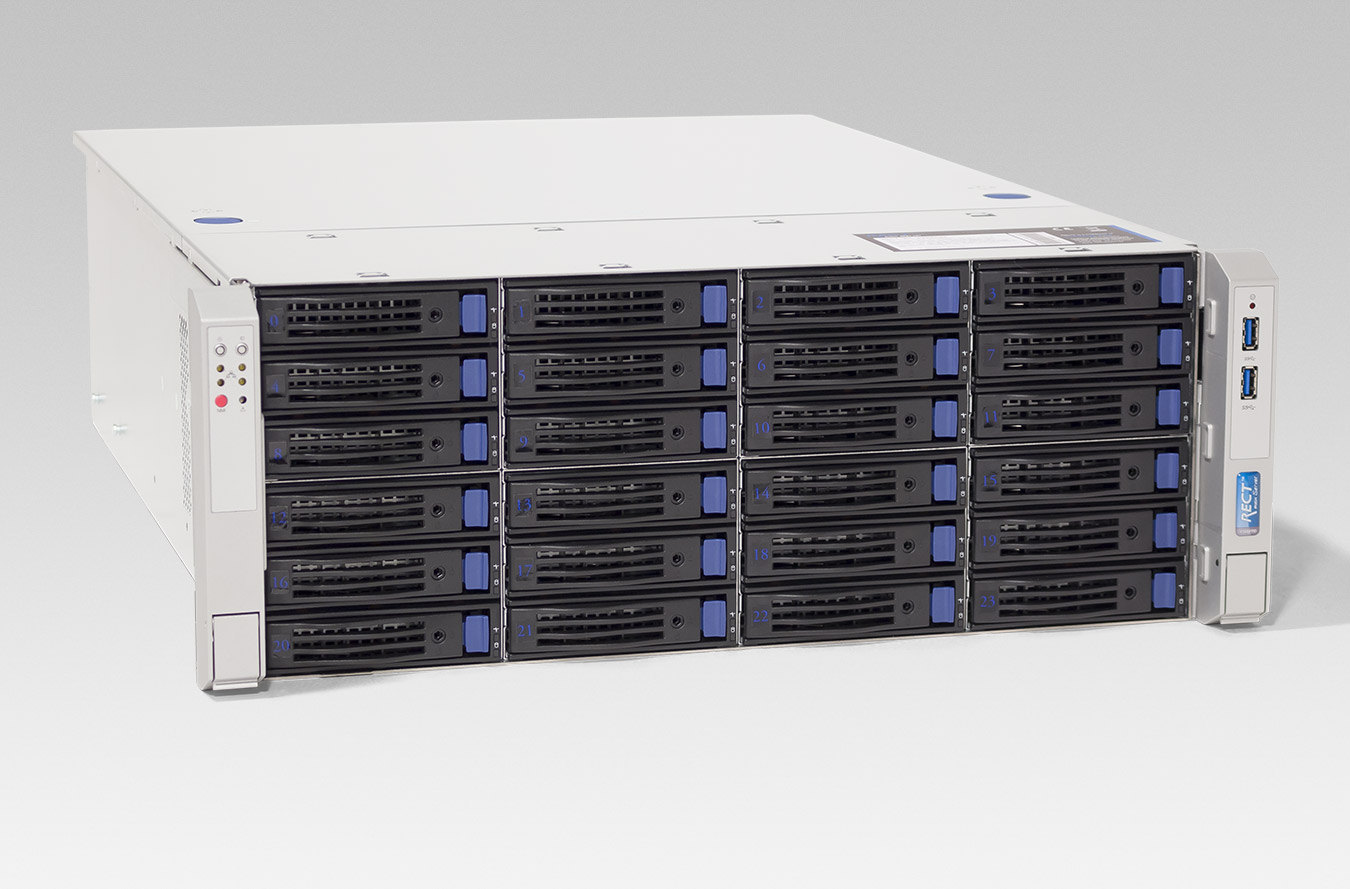

4U Storage Rack Server up to 576 Terabyte

KeyFacts Basesystem

  • high quality 19" rackmount chassis (4U) with 24 HDD slots (HotSwap) and up to 576 TB storage capacity
  • Open-E DSS V7 software for easy and fast integration (simple web based configuration)
  • supports NAS as well as iSCSI
  • compatible with all established environments (VMware, Citrix, Microsoft, Linux, Mac OS X)

Intel Single-CPU RECT™ ST-3862R24-N

  • single-processorarchitecture with Intel® Xeon® E3-1220v3 with 3.10 GHz, 8 MB Cache, QuadCore
  • 8 GB DDR3 ECC RAM
  • RAID-Controller for up to 24 HDDs (level: 0, 1, 5, 6, 10, 50, JBOD)
  • 2x 1 Gbit-LAN onboard

Intel Dual-CPU RECT™ ST-3885R24-N

  • modern Intel Dual-processorarchitecture with 2x Intel® Xeon® E5-2609V4 with 1.70 GHz, 20 MB cache, EightCore
  • 32 GB DDR4 RAM ECC Reg.
  • RAID-Controller for up to 24 HDDs
    (level: 0, 1, 5, 6, 10, 50, JBOD)
  • 2x 1 Gbit-LAN onboard

4U Storage Rack Server up to 576 Terabyte

KeyFacts Basesystem

  • high quality 19" rackmount chassis (4U) with 24 HDD slots (HotSwap) and up to 576 TB storage capacity
  • Open-E DSS V7 software for easy and fast integration (simple web based configuration)
  • supports NAS as well as iSCSI
  • compatible with all established environments (VMware, Citrix, Microsoft, Linux, Mac OS X)

Intel Single-CPU RECT™ ST-3862R24-N

  • single-processorarchitecture with Intel® Xeon® E3-1220v3 with 3.10 GHz, 8 MB Cache, QuadCore
  • 8 GB DDR3 ECC RAM
  • RAID-Controller for up to 24 HDDs (level: 0, 1, 5, 6, 10, 50, JBOD)
  • 2x 1 Gbit-LAN onboard

Intel Dual-CPU RECT™ ST-3885R24-N

  • modern Intel Dual-processorarchitecture with 2x Intel® Xeon® E5-2609V4 with 1.70 GHz, 20 MB cache, EightCore
  • 32 GB DDR4 RAM ECC Reg.
  • RAID-Controller for up to 24 HDDs
    (level: 0, 1, 5, 6, 10, 50, JBOD)
  • 2x 1 Gbit-LAN onboard
Configuration
Basic configuration

Well priced: Please reset the configuration to have the basic configuration.

Recommended configuration

Choose the CORETOs recommended configuration.

Loading...

Basic system

Details
  •         Open-E Performance and Certification Report

Case


RAID controller

Details


  •         Open-E Performance and Certification Report

Enterprise SSD-Caching

SSD-Caching is the best choice for hard-drive-based raid-arrays. The caching algorithm speeds up the read and write operations as well as the total I/O operations per second (IOPS) and lowers the latency by factor 25. Bigger hard drive arrays should be combined with a bigger SSD.

Details




Controller Cache Protection

Short-term data storage to protect data in RAID-Cache in case of power outage.

  • by Adaptec 7805Q is the cache protection already included.

hard drives

Details
  • S-ATA 3.5" Enterprise Hard Drives
  • SAS 3.5" Enterprise Hard Drives
  • Need more?   show more options
    Too much?   show less options

Solid State Disks

Details
  • Enterprise SSDs with optimized performance for read-intensive applications
  • Enterprise SSDs with optimized performance for read and write intensive applications (Mixed-Use)
  • Need more?   show more options
    Too much?   show less options

RAID configuration



Additional network cards

Limit selection

Details
















Uninterruptible power supply (UPS)

Protected from power interruptions?
Choose from a wide variety  RECT Accessories - UPS

    Open-E Data Storage Software

    Notice to Open-E: You just have to licence the net capacity of your Raid, not the sum of the physical disk capacity


    Open-E Support License







    RECT Smart Warranty .HDD

    The best choice for sensitive data! With the RECT "Smart Warranty .HDD" you yourself can decide how you want to dispose of a faulty enterprise hard drive because you can simply keep that hard drive while we will take the necessary replacement directly to you.
    Note: ... ►The capacity and not the number of the inserted hard drives is decisive. In case you need hard drives with different capacities within one configuration, the chosen option for "Smart Warranty .HDD" has to comply with the biggest hard drive in it. For all details regarding the transaction, please see the service conditions for this service. SSDs are excluded from the RECT "Smart Warranty .HDD" ◄

    • 36 months runtime for all 3.5" hard drives of the storage server
    • 60 months runtime for all 3.5" hard drives of the storage server

    Service & Support Level

    Location:

    Details
    • Bring-In Warranty
      Technical support: by e-mail, effective support with initial operation (to be carried out within 30 days after delivery).
      Rapairs: components or the whole system will be repaired or replaced subsequently to reshipment, we will pay the costs for transport and logistics within 30 days after delivery.
    • Pick-Up Warranty
      Technical support: by phone and e-mail, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
      Repairs: pick-up and return service for replacement of defective components or the whole system. Components will be replaced in the form of an advanced warranty replacement with guaranteed express delivery.
    • On-Site (3BD) Warranty
      Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
      Repairs: on-site service with guaranteed reaction time within three business days for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.
    • On-Site (NBD) Warranty
      Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
      Repairs: on-site service with guaranteed reaction time within the next business day for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.

    RECT™ ST-38xxR24-N

    €
    Main configuration
    3,850.00
    Configuration:
    Complete Configuration
    Current price


    Main configuration: 3,850.00 €
    Complete Configuration: 0,00 €
    Current price: 0,00 €   (Plus VAT)
    RECT-ID: 2250
    Last update: 23.11.2024
