RECT™ ST-2272C4-N

RECT-ID:2257

RECT™ ST-2272C4-N

RECT-ID: 2257

Ready for shipment in about 2-4 workdays

Express-shipping: start request...

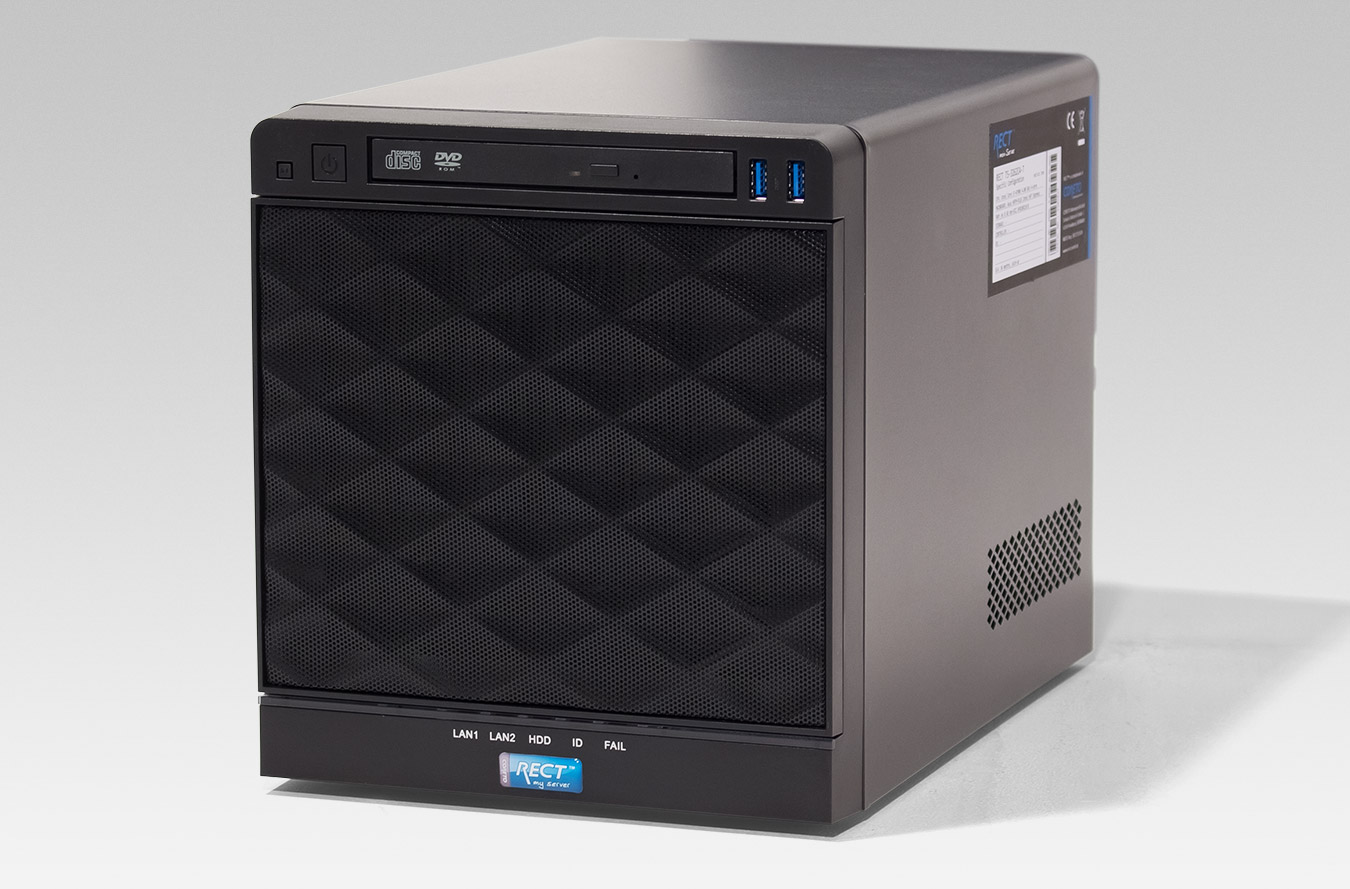

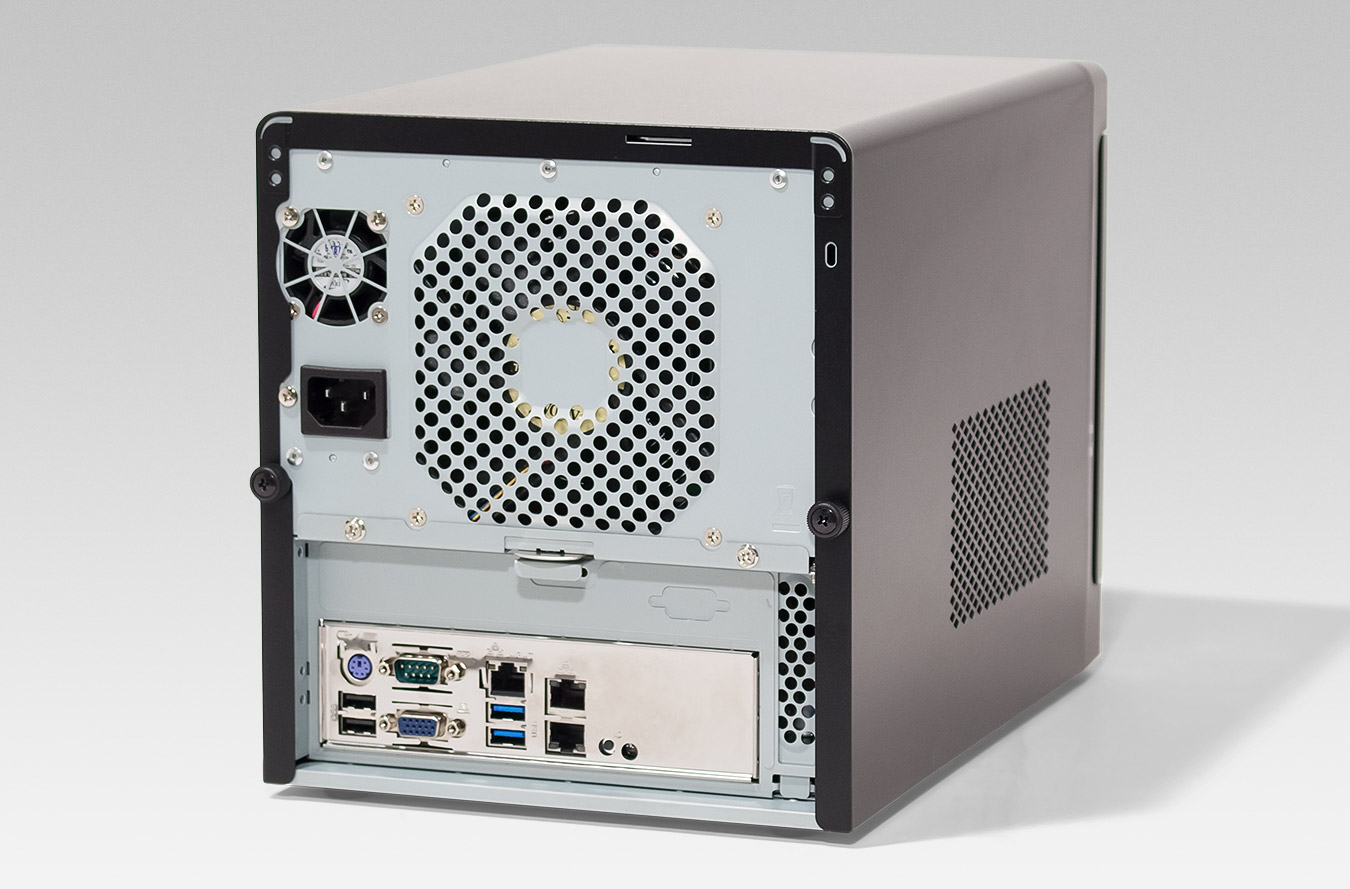

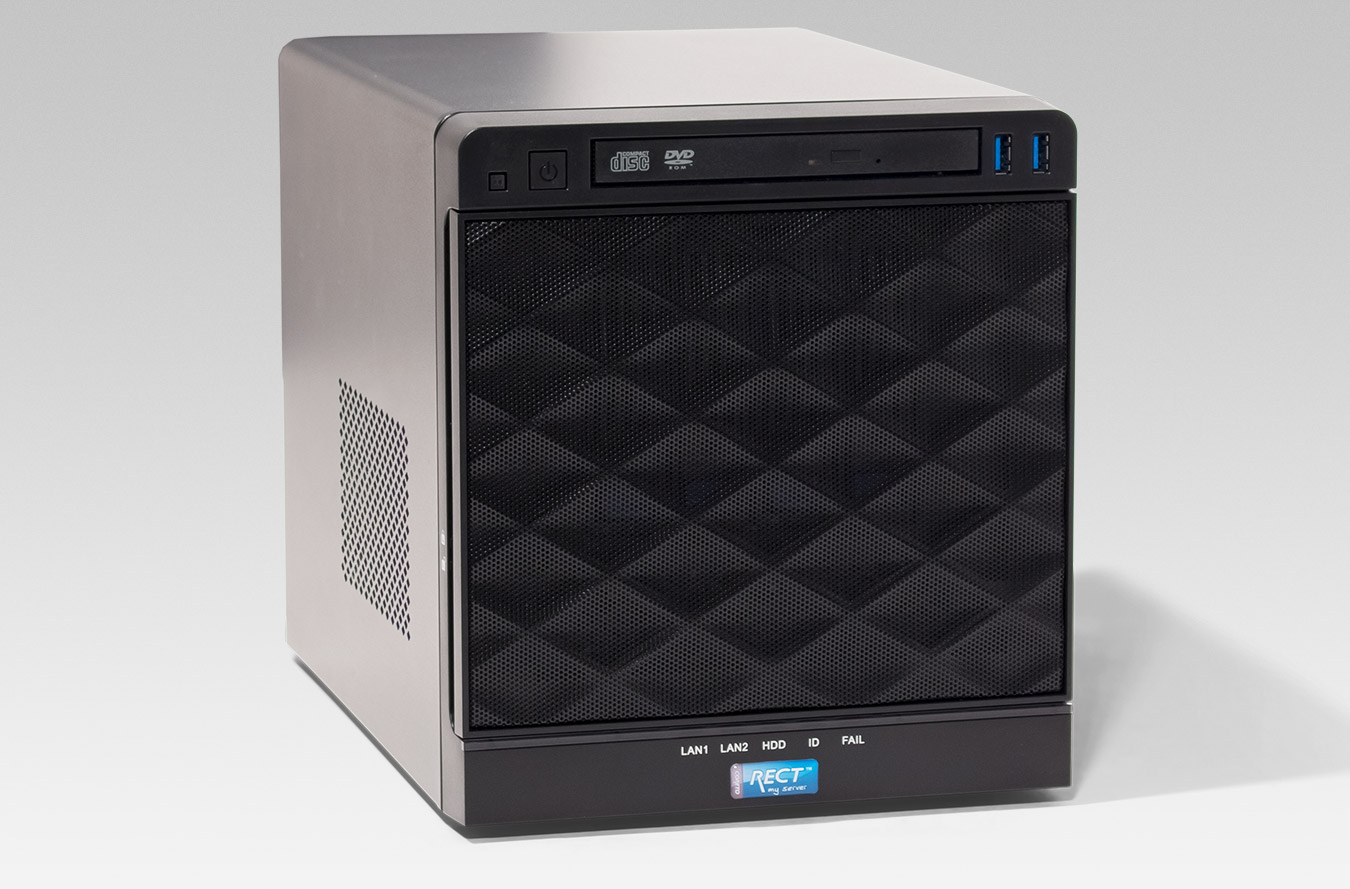

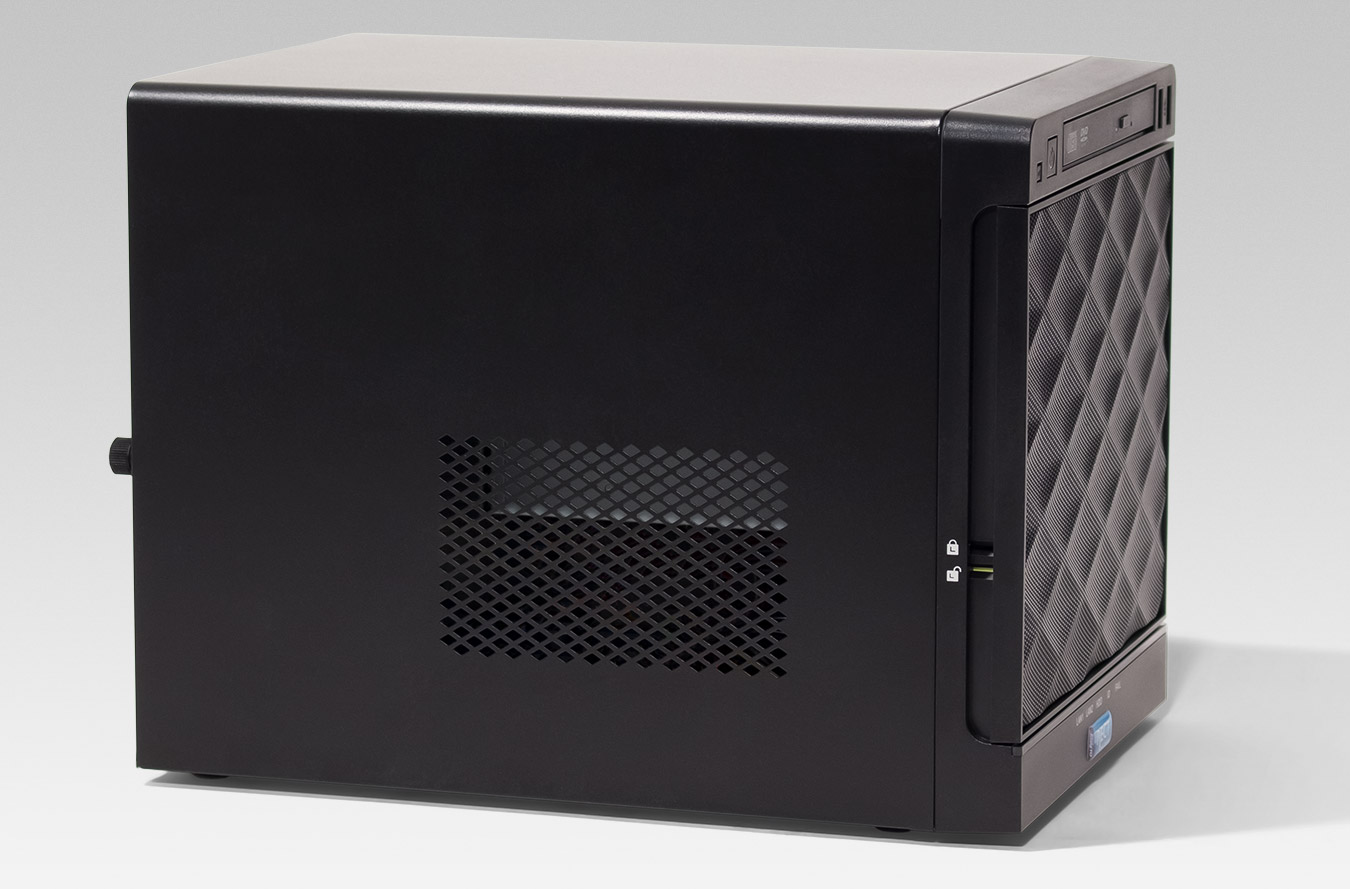

Compact Mini-Tower Storage for up to 96 TB capacity

Small. Quiet. Powerful.
The ideal entry storage for small companies or small departments where the emphasis is on centralized data storage and sharing collective information over the network
Optional pre-installed storage operating system (OpenMediaVault, TrueNAS Core)
Simple and intuitive web based Administration
supports network services like::
NFS, SMB/CIFS, FTP, TFTP
compatible with Microsoft, Linux and Apple OS-X Environments

KeyFacts

Processor: Intel Pentium G6405 oder Intel Xeon E-2400
Server-Mainboard with Intel® C252 chipset
up to 64 GB DDR4-3200 ECC RAM
Remote Management onboard (IPMI 2.0)
up 104 TeraByte S-ATA 6GBit/s HDD storage
RAID-Technology (Level 0, 1, 5, 10)
2x 1 Gbit-LAN onboard
4x USB 3.0, 2x USB 2.0
optimised fan and cooling system for an extra low noise development (<26 dB)

Compact Mini-Tower Storage for up to 96 TB capacity

Small. Quiet. Powerful.
The ideal entry storage for small companies or small departments where the emphasis is on centralized data storage and sharing collective information over the network
Optional pre-installed storage operating system (OpenMediaVault, TrueNAS Core)
Simple and intuitive web based Administration
supports network services like::
NFS, SMB/CIFS, FTP, TFTP
compatible with Microsoft, Linux and Apple OS-X Environments

KeyFacts

Processor: Intel Pentium G6405 oder Intel Xeon E-2400
Server-Mainboard with Intel® C252 chipset
up to 64 GB DDR4-3200 ECC RAM
Remote Management onboard (IPMI 2.0)
up 104 TeraByte S-ATA 6GBit/s HDD storage
RAID-Technology (Level 0, 1, 5, 10)
2x 1 Gbit-LAN onboard
4x USB 3.0, 2x USB 2.0
optimised fan and cooling system for an extra low noise development (<26 dB)

Basic configuration

Well priced: Please reset the configuration to have the basic configuration.

Recommended configuration

Choose the CORETOs recommended configuration.

System platform

RECT Mini-Storage ST-2272C4-N
- Compact and silent Mini-Tower Case

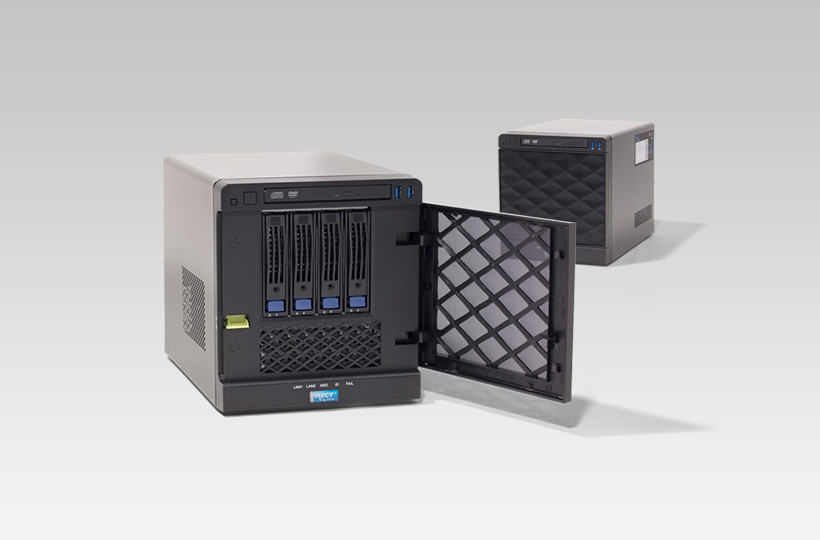

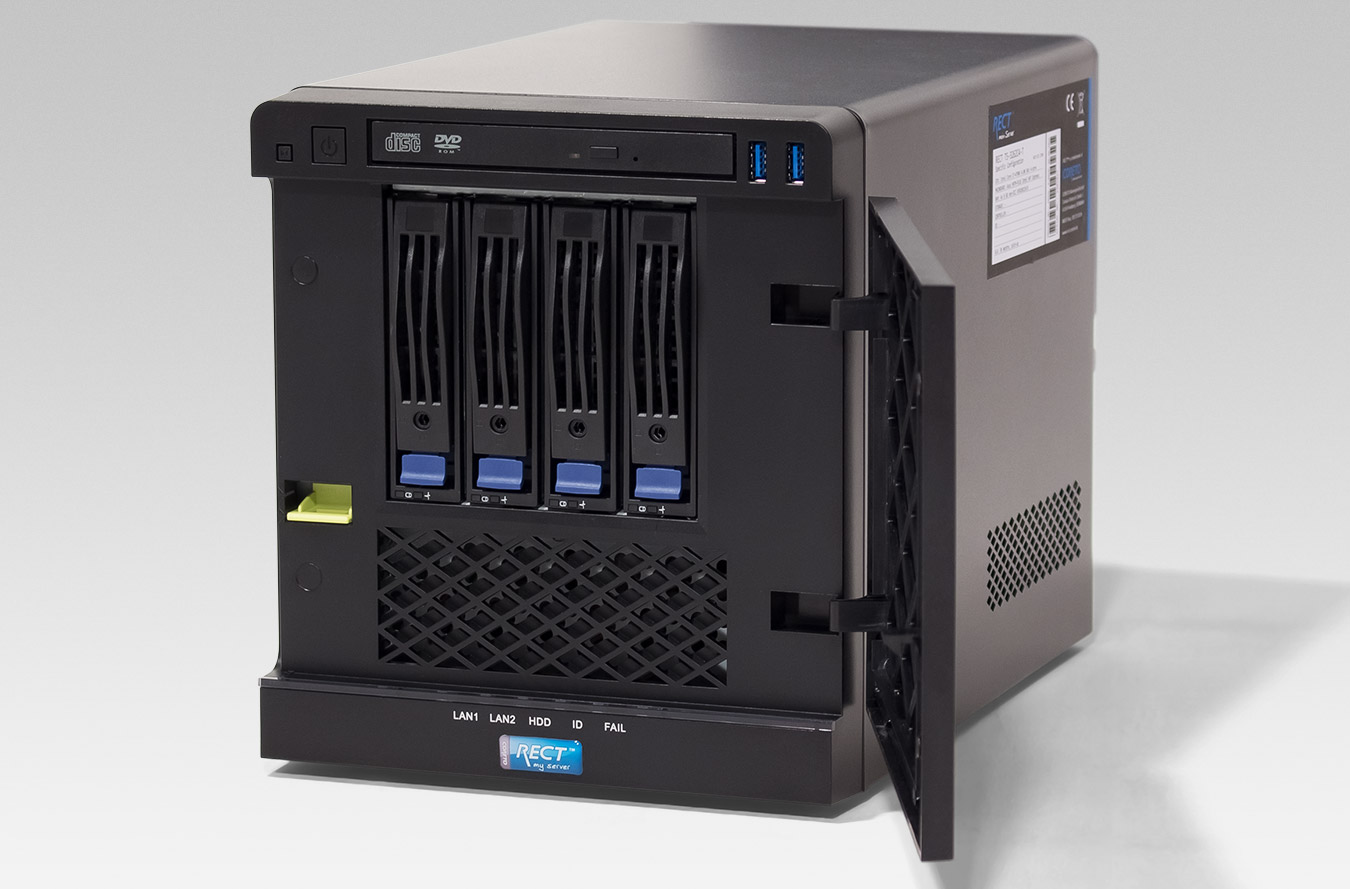

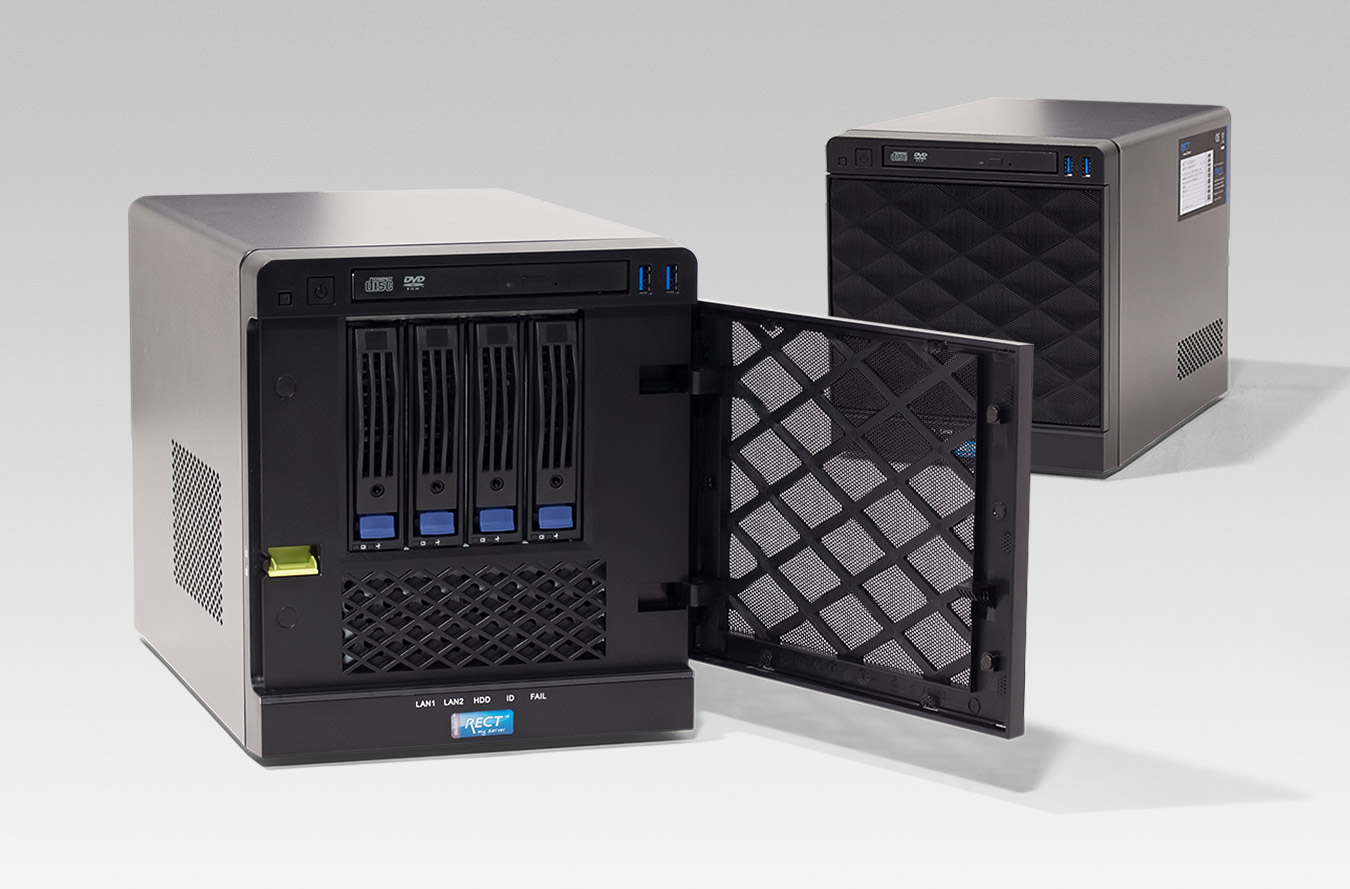

- Integrated storage with 4 hot-swap trays (3,5"/2,5")
- Intel Pentium Gold G6405 or Intel Xeon E-2300 Series processor
- 8 GB DDR4-3200 ECC RAM, expandable up to 64 GB
- Server-Mainboard with Intel C252 chipset
- Remote Management Interface onboard (IPMI 2.0)
- 500 GB internal M.2 NVMe SSD for storage operating system
- Software-RAID, Level: 0, 1, 5 and 10
- 2x 1 Gbit-LAN ports onboard
- 4x USB 3.0 and 2x USB 2.0 ports
- Expandable with one PCI-Express card (PCIe 4.0 x16)
- High-Efficiency 450W power supply 80Plus Platinum
- Dimensions (WxDxH): 210mm x 275mm x 230mm

Processor

Details

Intel Pentium Gold G6405 (4.10 GHz, 4 MB Cache, 2 Cores, 4 Threads)
Intel Xeon E-2314 (2.80 GHz, 8 MB Cache, 4 Cores, 4 Threads, Turbo up to 4.50 GHz)235.00 €
Intel Xeon E-2356G (3.20 GHz, 12 MB Cache, 6 Cores, 12 Threads, Turbo up to 5.00 GHz)363.00 €

Memory

Details

8 GB DDR4-3200 RAM (1x UDIMM 8 GB PC4-25600 ECC)
16 GB DDR4-3200 RAM (2x UDIMM 8 GB PC4-25600 ECC)52.00 €
32 GB DDR4-3200 RAM (2x UDIMM 16 GB PC4-25600 ECC)130.00 €
64 GB DDR4-3200 RAM (2x UDIMM 32 GB PC4-25600 ECC)234.00 €

Storage Operating System

OpenMediaVault is an Open-Source storage operating system based on the Linux-Distribution Debian, and is adapted for use as a file server. It supports network protocols such as NFS, SMB / CIFS, FTP and TFTP and thanks to the modular design of the framework it can be enhanced via plugins. You can customize settings and manage the System over a simple and intuitive web-based configuration interface.

none
OpenMediaVault 7 Basic Installation20.00 €
Simple out-of-the-box installation in english language on the internal SSD, no RAID configuration, no network setup (DHCP)
OpenMediaVault 7 Extended Installation50.00 €
Installation of the operating system in your preferred language with the following configurations:
- RAID configuration with initialization
- Set up filesystem EXT4
- Network setup with static IP address
- HDD S.M.A.R.T. monitoring enabled
- HDD power management enabled
- Proactive process and system state monitoring enabled
Your Operating System50.00 €
Pre-installation of your operating system (e.g. TrueNAS Core, XigmaNAS)
Simple out-of-the-box installation in your preferred language including RAID configuration

Power supply

High-efficiency single power supply 450W
80Plus Platinum certification with up to 94% efficiency level, active PFC, 1 fan
Over current protection (OCP), over voltage protection (OVP), over power protection (OPP), short circuit protection (SCP)

Power Cable

one Power Cable 1.8m black (DE)
Schuko plug (CEE7/7) angled, to C13
one Power Cable 1.8m black (UK)
British power plug (BS 1363), to C13
one Power Cable 1.8m black (Switzerland)
Swiss power plug (SEV 1011), to C13
one Power Extension Cable 1.5m black (C13 to C14)
for connecting the server to a UPS or PDU

Uninterruptible power supply (UPS)

Protected from power interruptions?

Choose from a wide variety

RECT Accessories - UPS

Main configuration:	958.00 €
Complete Configuration:	713.00 €
Current price:	1,671.00 €	(Plus VAT)

RECT-ID:	2257
Last update:	29.03.2025
