RECT™ TS-5473R4

RECT-ID:1769

RECT™ TS-5473R4

RECT-ID: 1769
••••••••
Ready for shipment in about 2-4 workdays
Express-shipping: start request...

with all-new Intel Xeon E-2400 Processors

  • Next generation Intel microarchitecture "Raptor Lake" gives you even more cores, computing power and improved integration
  • Ideal for small enterprises up to 15 employees
  • Easy to service and manage

KeyFacts

  • latest Intel® Xeon® Single-CPU technology "Raptor Lake" on socket LGA1700
  • up to Intel® Xeon® E-2488 with 3.20 GHz (turbo up to 5.60 GHz), 8 Cores, 16 Threads and 24 MB Smart Cache
  • Server-Mainboard with Intel® C262 chipset
  • up to 192 GB DDR5 ECC RAM
  • one M.2 interface for NVMe SSDs (PCIe 4.0 x4)
  • up to 104 TeraByte HDD storage
  • RAID-Technology (Level: 0, 1, 5 and 10)
  • Remote Management features with IPMI 2.0

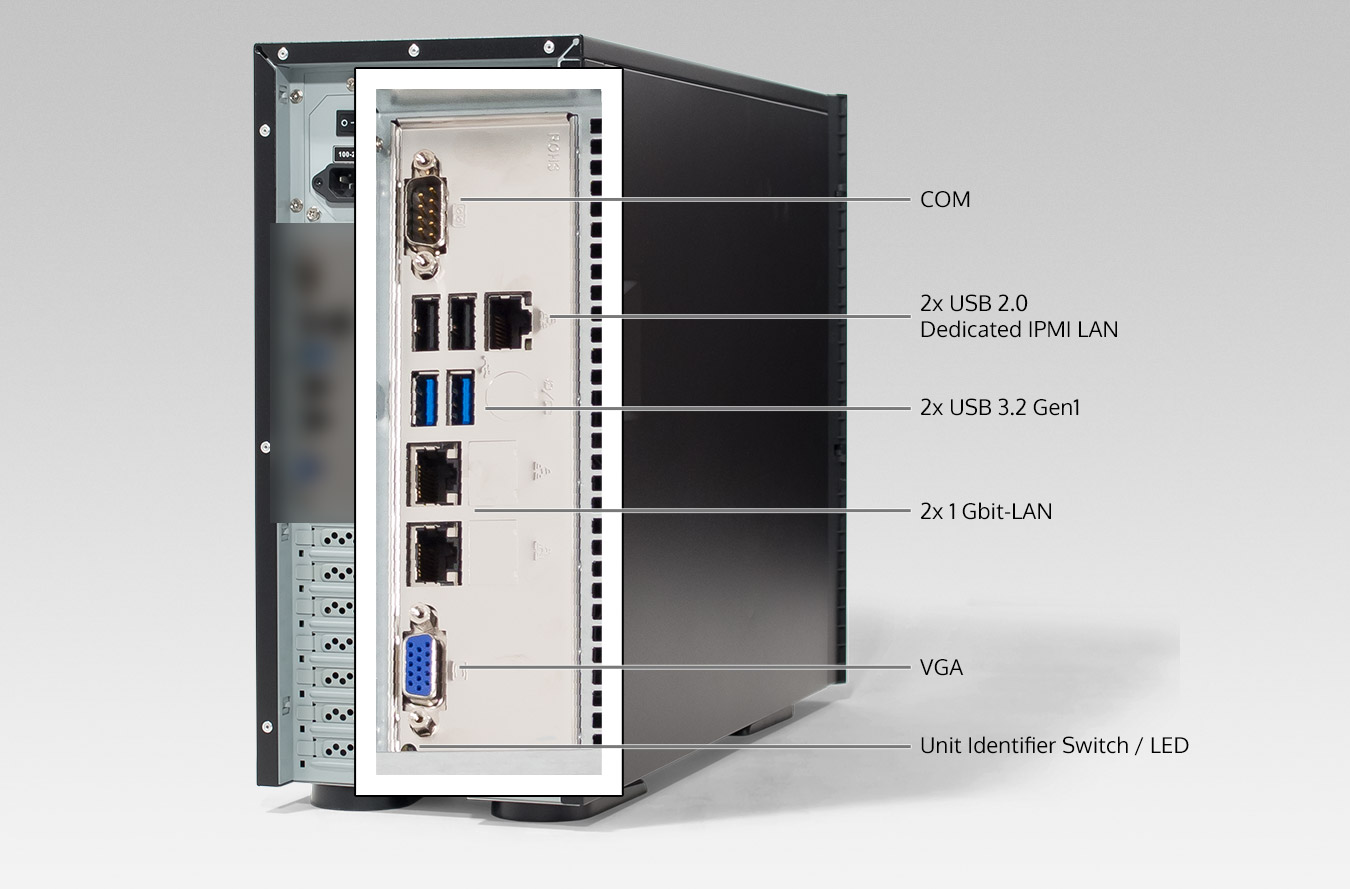

  • with 2x 1Gbit LAN ports onboard (RJ45)
  • 4x USB 3.0, 2x USB 2.0

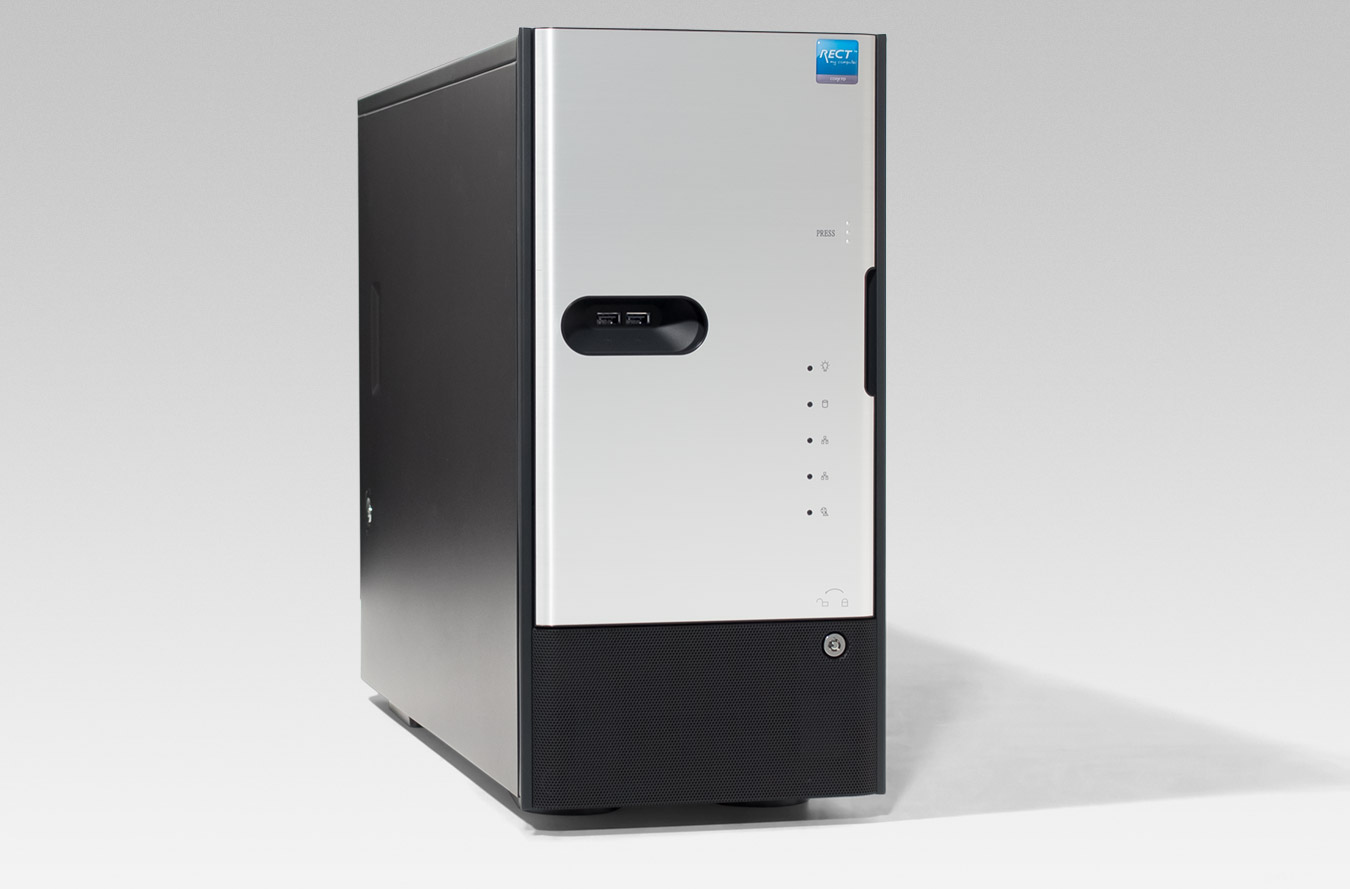

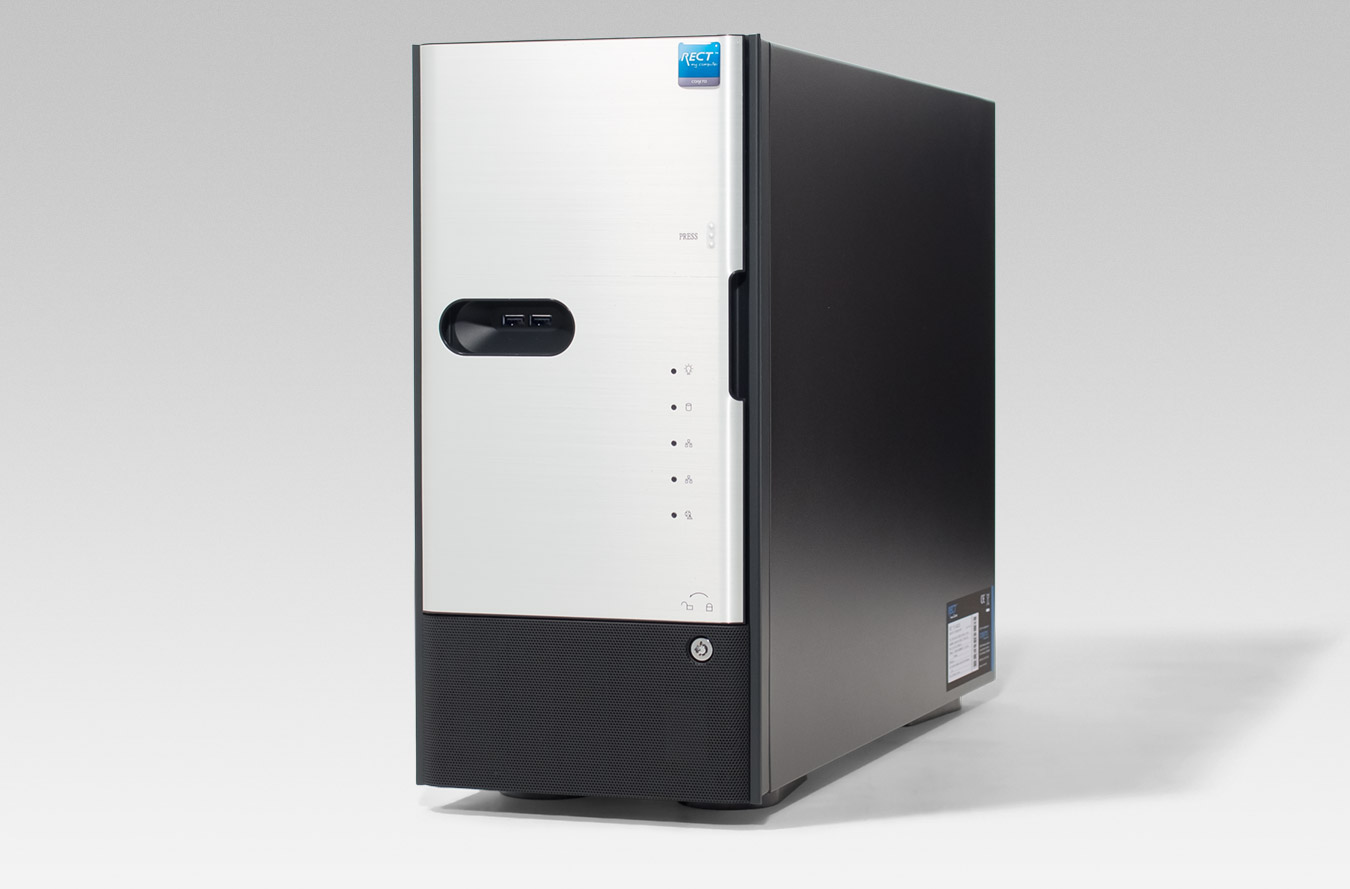

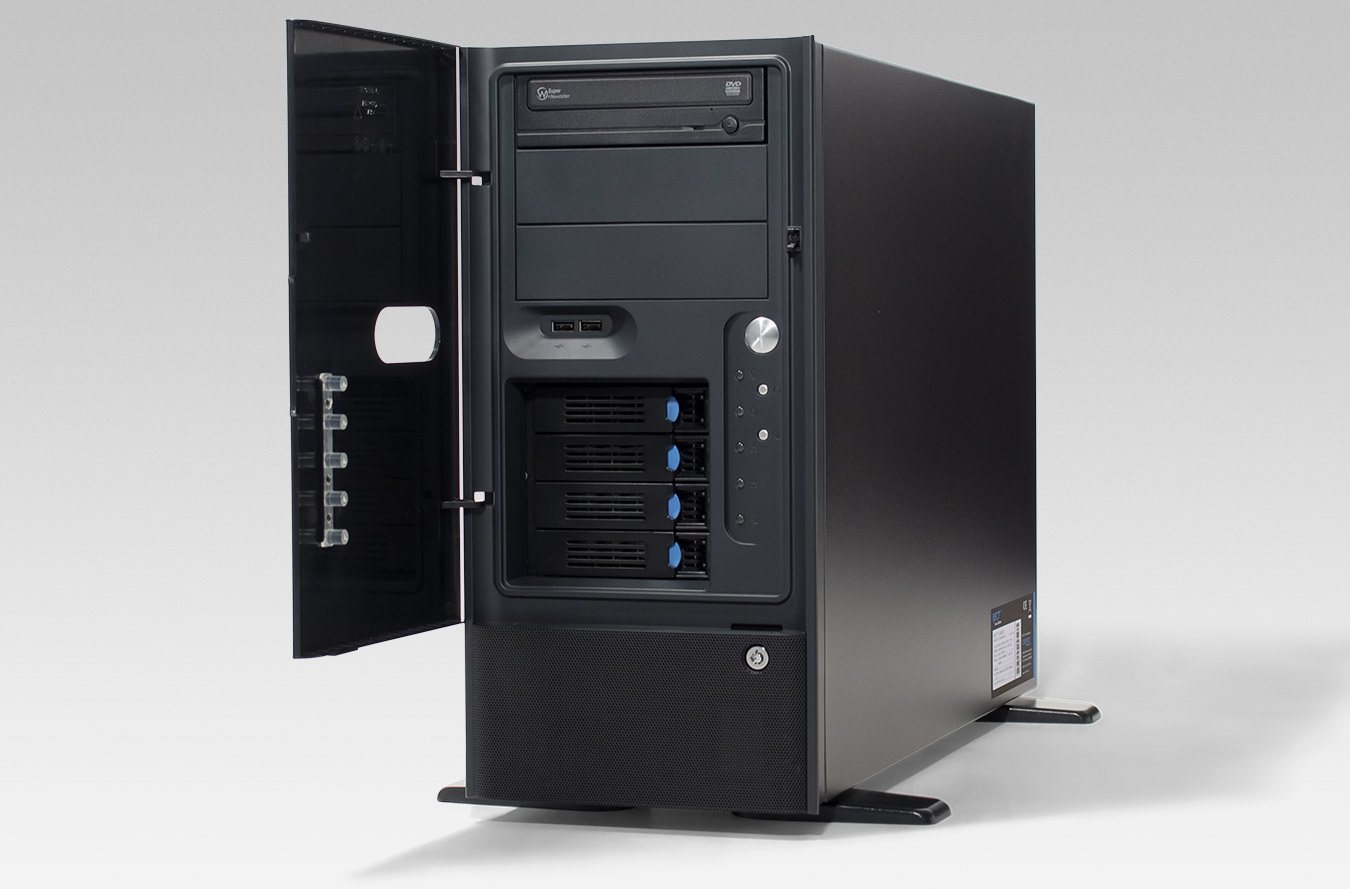

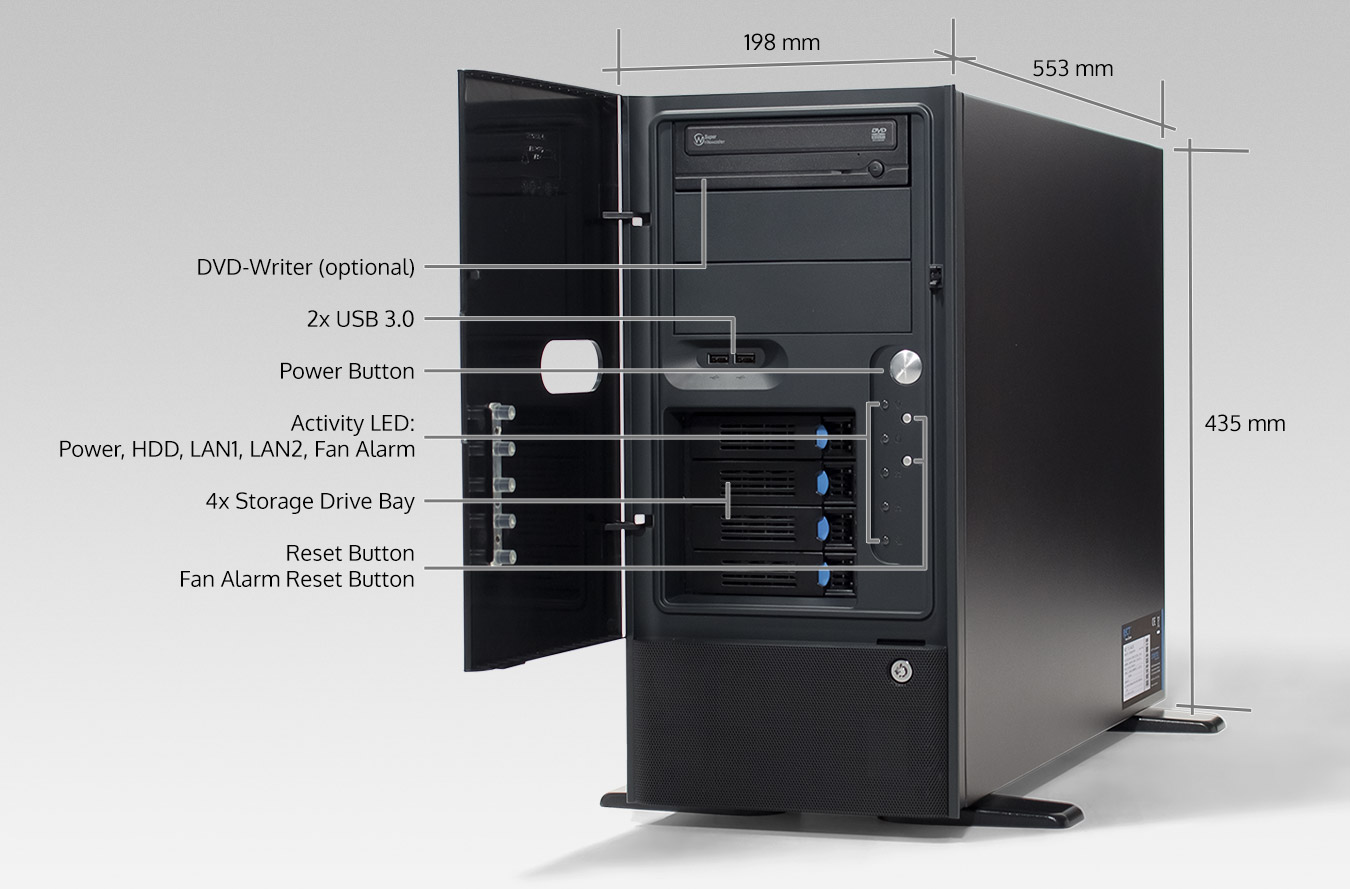

  • High-quality Tower Server Case with lockable front door and 4 hot-swap trays
  • Single or redundant power supply

Supported operating systems

  • Microsoft Windows Server 2022
  • Microsoft Windows 10/11
  • Linux (Red Hat, SUSE, Ubuntu LTS, Debian, CentOS)
  • Proxmox, XCP-ng

with all-new Intel Xeon E-2400 Processors

  • Next generation Intel microarchitecture "Raptor Lake" gives you even more cores, computing power and improved integration
  • Ideal for small enterprises up to 15 employees
  • Easy to service and manage

KeyFacts

  • latest Intel® Xeon® Single-CPU technology "Raptor Lake" on socket LGA1700
  • up to Intel® Xeon® E-2488 with 3.20 GHz (turbo up to 5.60 GHz), 8 Cores, 16 Threads and 24 MB Smart Cache
  • Server-Mainboard with Intel® C262 chipset
  • up to 192 GB DDR5 ECC RAM
  • one M.2 interface for NVMe SSDs (PCIe 4.0 x4)
  • up to 104 TeraByte HDD storage
  • RAID-Technology (Level: 0, 1, 5 and 10)
  • Remote Management features with IPMI 2.0
  • with 2x 1Gbit LAN ports onboard (RJ45)
  • 4x USB 3.0, 2x USB 2.0
  • High-quality Tower Server Case with lockable front door and 4 hot-swap trays
  • Single or redundant power supply

Supported operating systems

  • Microsoft Windows Server 2022
  • Microsoft Windows 10/11
  • Linux (Red Hat, SUSE, Ubuntu LTS, Debian, CentOS)
  • Proxmox, XCP-ng
Configuration
Basic configuration

Well priced: Please reset the configuration to have the basic configuration.

Recommended configuration

Choose the CORETOs recommended configuration.

Windows Server 2022
Loading...

Silent Edition

The Silent Edition of this Tower Server features an optimized fan and cooling system for an uninterrupted work flow at less than 30dB. Our low noise Silent-Kit is an optimized solution for small businesses and offices without a dedicated server room. It allows for the server to be operated in the direct vicinity of the workplace.



Processor

Details
  • Need more?   show more options
    Too much?   show less options

DDR5 Memory

Details
  • the maximum RAM speed supported by the processor with two DIMMs is 4400 MHz

Mainboard

Details

Trusted Platform Module

Remote Management Interface on Board

IPMI 2.0, KVM over LAN, Virtual Media over LAN, Remote Power on/off and Reset, Remote Hardware Monitoring, Embedded Web-Server


Drives

4 in hot-swap trays, 2 internal (2.5")

    • onboard (M.2)1
    • SSD (SATA)2
    • SSD (SAS)
    • HDD (SATA)
    • HDD (SAS)
    1 pieces maximum
    Details
    • Enterprise M.2 NVMe SSDs (PCIe 4.0)
      with optimized performance for read-intensive applications (1DWD)
    • Standard M.2 NVMe SSDs (PCIe 4.0)

    Controller

    4 PCIe slots maximum (4 left)
    Details
    • Onboard controller
      Host-based solution with basic requirements - for price-optimized entry.

    • RAID-Controller
      Ideal for 12 Gbps performance-hungry systems demanding high I/O transaction and high bandwidth processing without compromising maximum data protection.





    • Need more?   show more options
      Too much?   show less options

    RAID configuration



    Network


    • 1 Gbit Cards
    • 10 Gbit Cards
    • 25/40 Gbit Cards
    • Network Cable
    4 PCIe slots maximum (4 left)
    Details





    Case

    Details

    HDD HotSwap-tray


    Optical disc drive

    Power supply



    Power Cable





    Uninterruptible power supply (UPS)

    Protected from power interruptions?
    Choose from a wide variety  RECT Accessories - UPS

      Operating System

      The selected operating system is factory-installed and includes 30 days installation support, by phone or email.
      Further MS editions plus MS-Open licenses can be found under RECT Accessories. Further language editions on demand.

      language: German

      Details

      • Microsoft Windows Server 2025


      • Microsoft Windows Server 2022


      • Microsoft Windows 11

      Backup drives

      Tandberg RDX QuikStor combines the portability and reliability of tape-based backup with the speed and simplicity of a hard disk drive. RDX drives are tough, and media is shockproof and rugged enough to last more than 10 years. Tandberg RDX QuikStor offers reliable and convenient storage for backup, archive, data interchange and disaster recovery. RDX QuikStor provides a fixed disk mode and allows a seamless integration into windows-backup.


      Tape Streamer (LTO)

      Streamers are generally special orders and therefore cannot be refunded within our money-back guarantee for new customers. Please ask our sales consultants for details.

      Details


      Keyboard




      • Need more?   show more options
        Too much?   show less options

      Mouse


      Monitor




      Service & Support Level

      Location: Germany

      Details
      • Bring-In Warranty
        Technical support: by e-mail, effective support with initial operation (to be carried out within 30 days after delivery).
        Rapairs: components or the whole system will be repaired or replaced subsequently to reshipment, we will pay the costs for transport and logistics within 30 days after delivery.
      • Pick-Up
        Technical support: by phone and e-mail, effective support with initial operation, installation and configuration, support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: pick-up and return service for replacement of defective components or the whole system. Components will be replaced in the form of an advanced warranty replacement with guaranteed express delivery.
      • On-Site (3BD)
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration, support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within three business days for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.
      • On-Site (NBD)
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration, support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within the next business day for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.

      Alternativen:

      The Mini Raptor

      with Intel Xeon E-2400 Processors

      Silent-Server - RECT™ TS-3173C4 - with Intel Xeon E-2400 Processors

      RECT™ TS-3173C4

      Small, quiet and powerful - RECT Mini Server with latest Intel® Xeon™ E-2400 CPUs and 4 hot-swap trays:
      • Single Intel® Xeon® E-2400 Processor with up to 8 Cores, 3.70 GHz and Turbo up to 5.10 GHz
      • up to 96 GB DDR5 ECC RAM
      • up to 104 TB storage capacity in 4 hot-swap trays
      • Remote Management Features (IPMI 2.0)
      • Network: 2x 1Gbit LAN ports onboard

      The Raptor Shorty

      Short 1U Rack Server with all-new Intel Xeon E-2400 Processors

      Server - Rack Server - 1U - RECT™ RS-8573C SHORTY - Short 1U Rack Server with all-new Intel Xeon E-2400 Processors

      RECT™ RS-8573C SHORTY

      All-new Intel Xeon® E-2400 Processor Generation "Raptor Lake" in our 1U-"Shorty" with two 2.5" hot-swap trays:
      • short installation depth (only 381 mm)
      • Single Intel® Xeon® E-2400 processor
        with up to 8 Cores, up to 3.50 GHz and 24 MB Smart Cache
      • NEW: up to 192 GB DDR5 ECC RAM
      • up to 26 TB SSD storage in hot-swap
      • onboard up to two M.2 NVMe SSDs
      • Network: 2x or 4x 1Gbit LAN ports

      Raptor - Intel Xeon E

      1U Rack Server with all-new Intel Xeon E-2400 Processors

      Server - Rack Server - 1U - RECT™ RS-8573R4 - 1U Rack Server with all-new Intel Xeon E-2400 Processors

      RECT™ RS-8573R4

      Intel Xeon® E-2400 Processor Generation "Raptor Lake" in 1U Rack Server:
      • Single Intel® Xeon® E-2400 processor with up to 8 Cores, 3.50 GHz (Turbo up to 5.60 GHz) and 24 MB Smart Cache
      • NEW: up to 192 GB DDR5 ECC RAM
      • up to 104 TB SSD/HDD storage in 4 hot-swap trays
      • up to two M.2 NVMe SSDs (PCIe 4.0)
      • Network: 2x or 4x 1Gbit LAN ports

      Powerful Raptor Shorty

      Short 2U Rack Server with brand-new Intel Xeon E-2400 Processors

      Server - Rack Server - 2U - RECT™ RS-8673C - Short 2U Rack Server with brand-new Intel Xeon E-2400 Processors

      RECT™ RS-8673C

      all-new Intel Xeon® E-2400 Processor Generation "Raptor Lake" in short 2U Rack Server:
      • Single Intel® Xeon® E-2400 processor with up to 8 Cores, up to 3.50 GHz and 24 MB Smart Cache
      • NEW: up to 192 GB DDR5 ECC RAM
      • up to 52 TB HDD/SSD storage
      • up to two M.2 NVMe SSDs (PCIe 4.0)
      • Expandable with up to 4 addon cards
      • Netzwork: 2x or 4x 1Gbit LAN ports

      The Raptor - Intel Xeon E

      2U Rack Server with all-new Intel Xeon E-2400 Processors

      Server - Rack Server - 2U - RECT™ RS-8673R8 - 2U Rack Server with all-new Intel Xeon E-2400 Processors

      RECT™ RS-8673R8

      All-new Intel Xeon® E-2400 Processor Generation "Raptor Lake" in 2U Rack Server:
      • Single Intel® Xeon® E-2400 processor with up to 8 Cores, 3.50 GHz (turbo up to 5.60 GHz) and 24 MB Smart Cache
      • NEW: up to 192 GB DDR5 ECC RAM
      • up to 208 TB HDD storage in 8 hot-swap trays
      • up to two M.2 NVMe SSDs (PCIe 4.0)
      • Netzwork: 2x or 4x 1Gbit LAN ports

      Raptor - Intel Xeon E

      Short 4U Rack Server with all-new Intel Xeon E-2400 Processors

      Silent-Server - RECT™ RS-8873C5 - Short 4U Rack Server with all-new Intel Xeon E-2400 Processors

      RECT™ RS-8873C5

      all-new Intel Xeon® E-2400 Processor Generation "Raptor Lake" in short 4U Rack Server:
      • Single Intel® Xeon® E-2400 processor
        with up to 8 Cores, up to 3.50 GHz and 24 MB Smart Cache
      • NEW: up to 192 GB DDR5 ECC RAM
      • up to 130 TB HDD/SSD storage
      • up to two M.2 NVMe SSDs (PCIe 4.0)
      • Expandable with up to 4 addon cards
      • Netzwork: 2x or 4x 1Gbit LAN ports


      Main configuration: 1,437.00 €
      Complete Configuration: 1,432.00 €
      Current price: 2,869.00 €   (Plus VAT)
