RECT™ RS-8637MR24

RECT-ID:2586

RECT™ RS-8637MR24

RECT-ID: 2586
Ready for shipment in about 3-5 workdays
Express-shipping: start request...

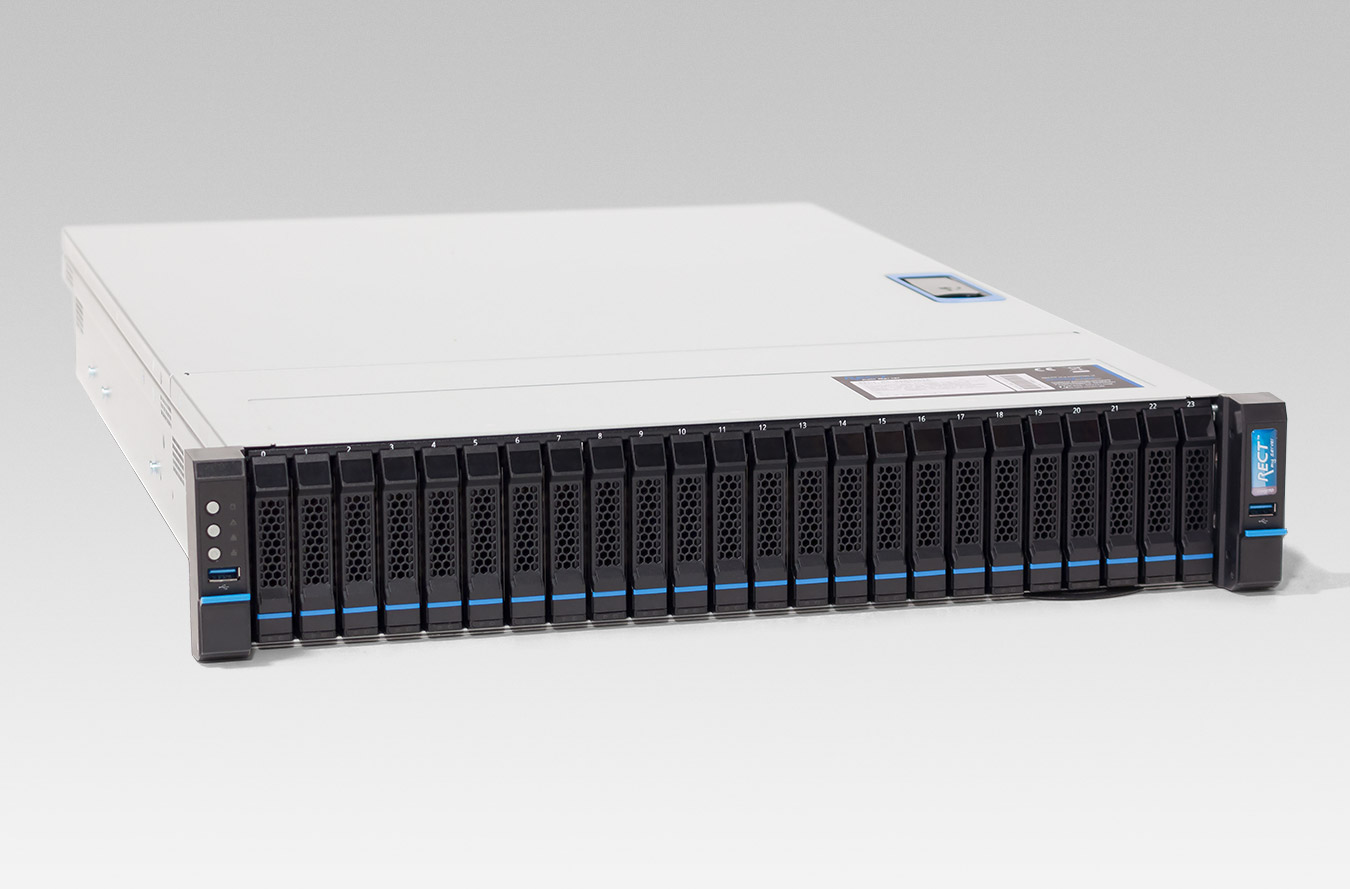

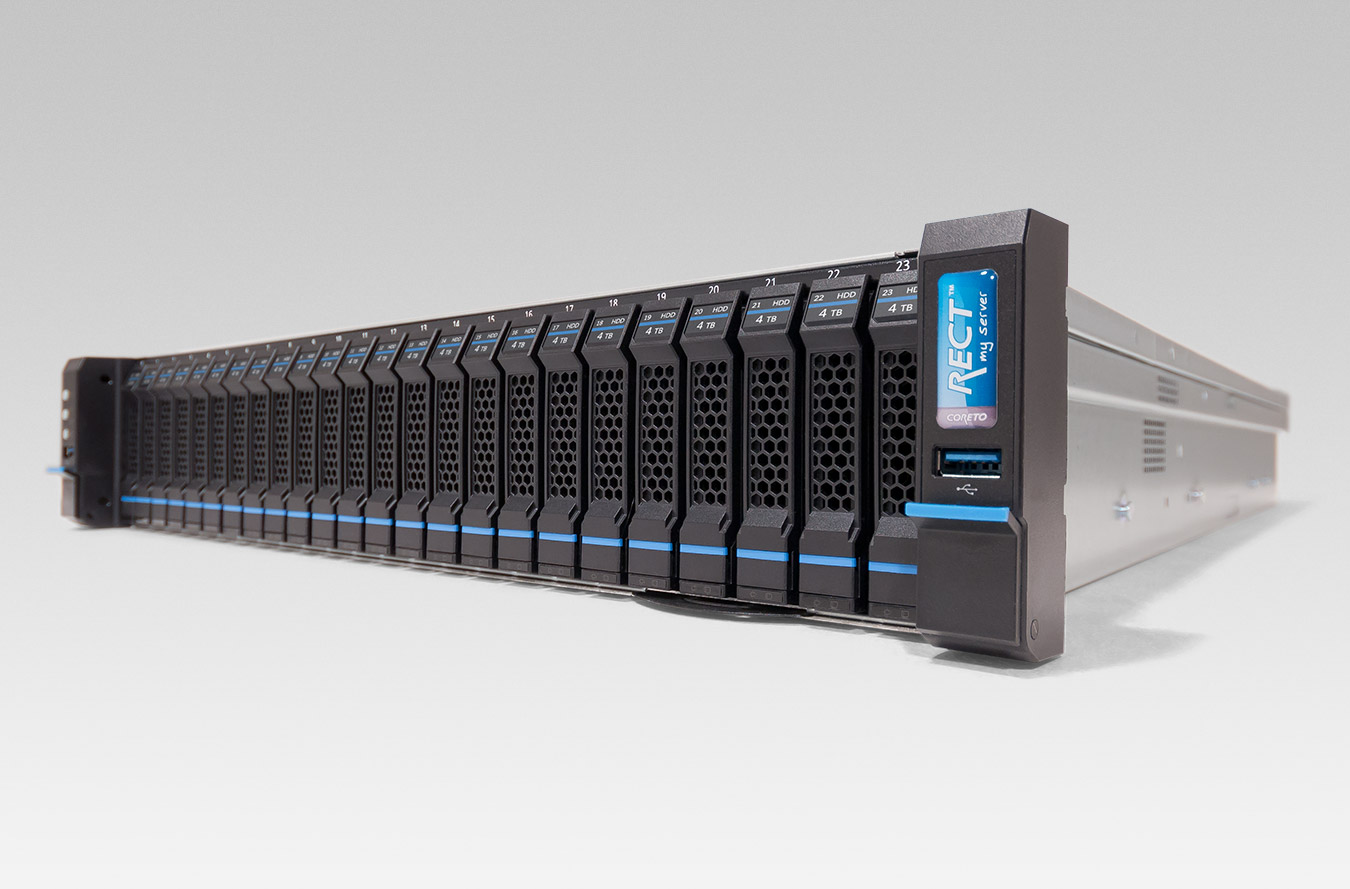

2U Rack Server with single AMD EPYC Milan CPU up to 64 Cores

  • Aiming at making virtualization more comfortable than ever, Microsoft Windows Server 2019 with Hyper-V is easy to install and intuitive to manage. Lower the costs of your business by unleashing the full potential of your server with Hyper-V. Different processes that are crucial for your operations can be distributed to multiple virtual machines. This is a boost to the stability as these dedicated machines are running isolated from each other; therefore a server crash doesn't affect other running virtual machines. This way the in-firm efficiency can be raised considerably.

KeyFacts

  • AMD EPYC™ processors featuring AMD newest "Zen 3" micro-architecture for incredible compute performance
  • driven by one AMD EPYC™ Milan CPU with 8, 16, 24, 28, 32, 48, 56 or 64 Cores and with up to 3.70 GHz, 256 MB L3 Cache, 128 PCIe Lanes and DDR4-3200 over 8-channel

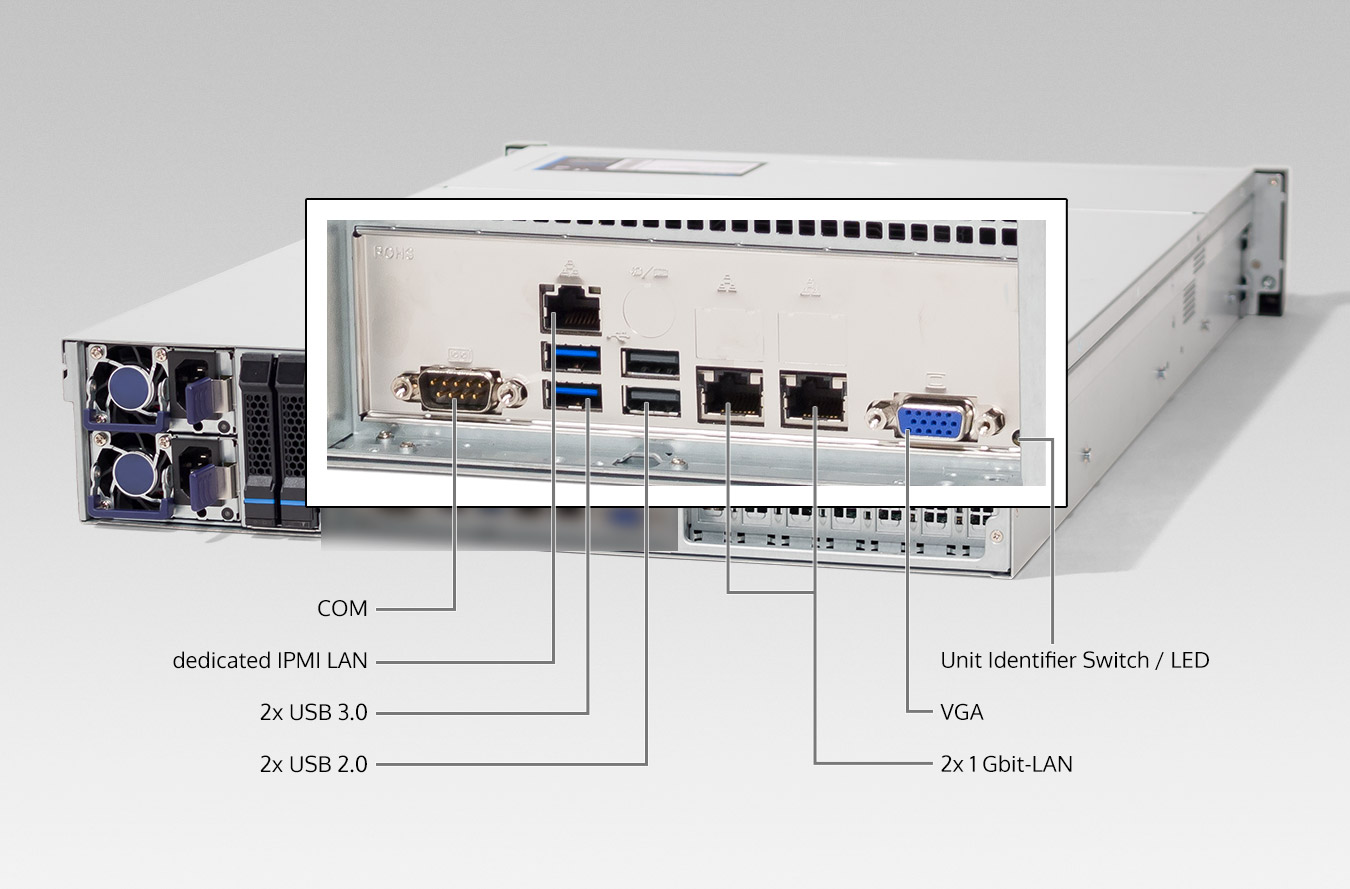

  • System-on-Chip Server-Mainboard with 2x 1 Gbit-LAN onboard
  • up to 1 TB DDR4-3200 RAM ECC Reg.
  • equipped with 12 Gbit SAS Expander-Backplane and Controller for maximum performance
  • traditional storage with HDD and SSD up to 368 TB via SAS 12Gb/s
  • Remote Management Features (IPMI 2.0)

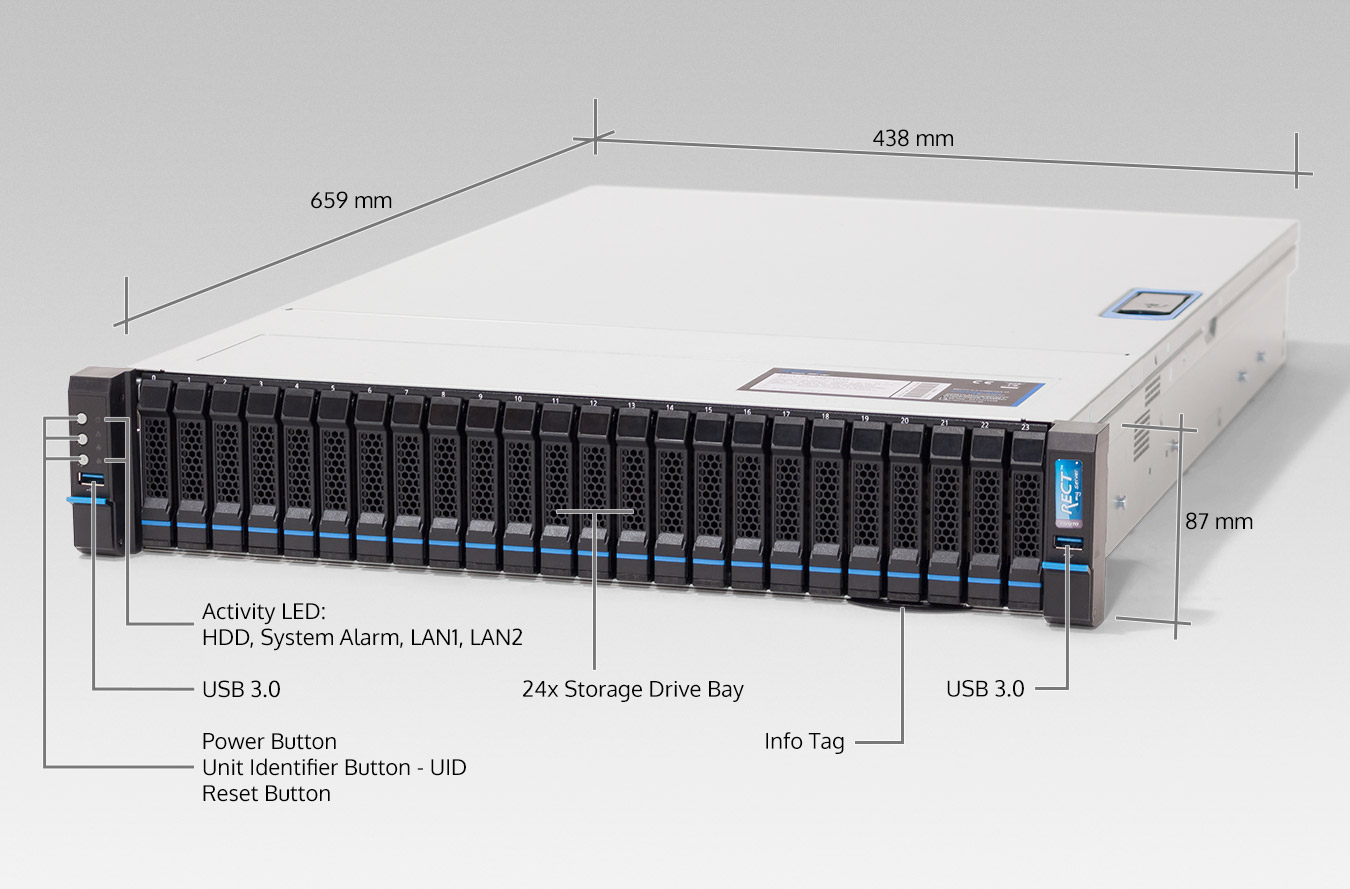

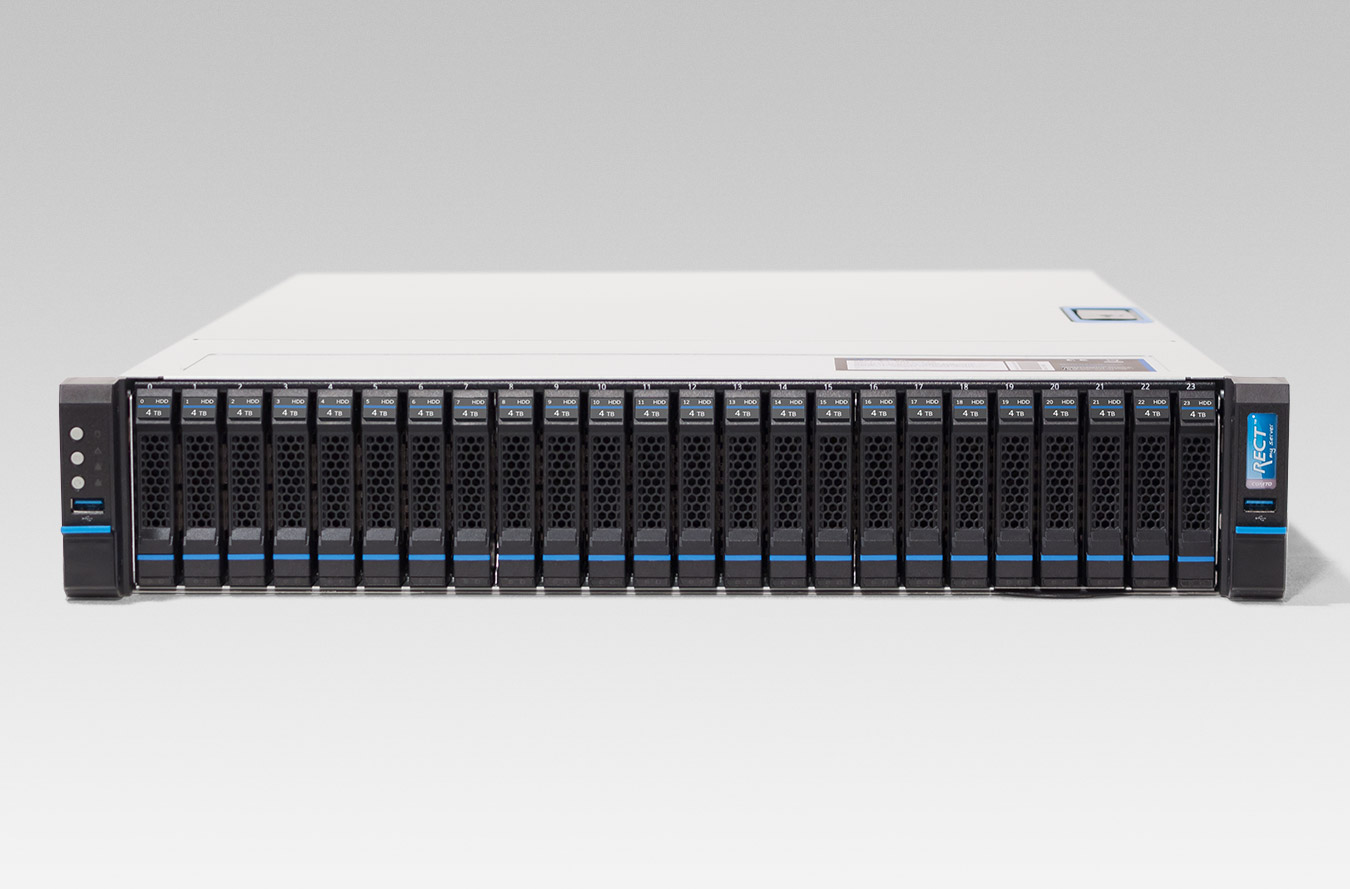

  • High-quality 19" Rack Server case with 24 hot-swap trays

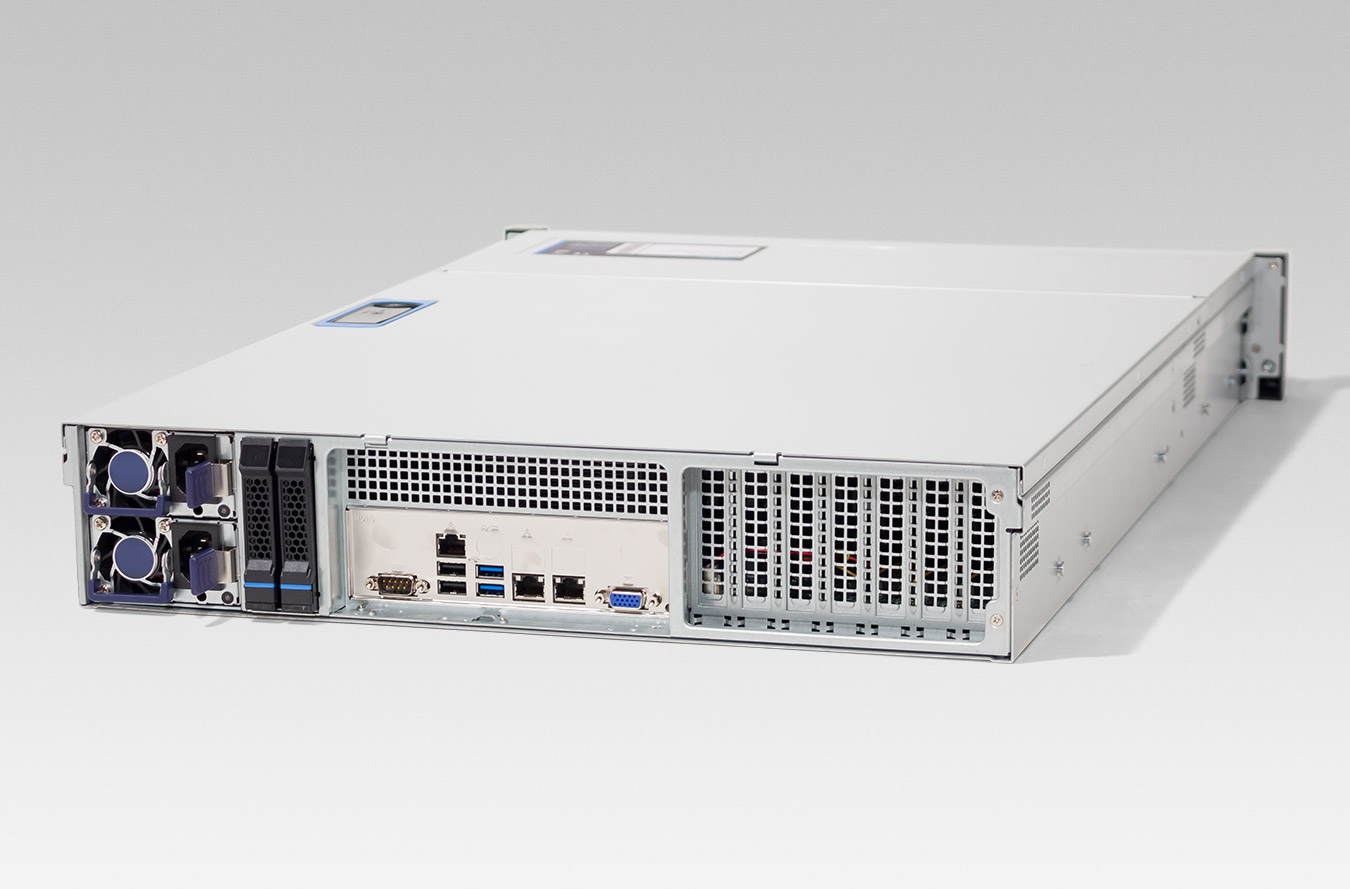

  • Single or redundant power supply

2U Rack Server with single AMD EPYC Milan CPU up to 64 Cores

  • Aiming at making virtualization more comfortable than ever, Microsoft Windows Server 2019 with Hyper-V is easy to install and intuitive to manage. Lower the costs of your business by unleashing the full potential of your server with Hyper-V. Different processes that are crucial for your operations can be distributed to multiple virtual machines. This is a boost to the stability as these dedicated machines are running isolated from each other; therefore a server crash doesn't affect other running virtual machines. This way the in-firm efficiency can be raised considerably.

KeyFacts

  • AMD EPYC™ processors featuring AMD newest "Zen 3" micro-architecture for incredible compute performance
  • driven by one AMD EPYC™ Milan CPU with 8, 16, 24, 28, 32, 48, 56 or 64 Cores and with up to 3.70 GHz, 256 MB L3 Cache, 128 PCIe Lanes and DDR4-3200 over 8-channel
  • System-on-Chip Server-Mainboard with 2x 1 Gbit-LAN onboard
  • up to 1 TB DDR4-3200 RAM ECC Reg.
  • equipped with 12 Gbit SAS Expander-Backplane and Controller for maximum performance
  • traditional storage with HDD and SSD up to 368 TB via SAS 12Gb/s
  • Remote Management Features (IPMI 2.0)
  • High-quality 19" Rack Server case with 24 hot-swap trays
  • Single or redundant power supply
Configuration
Basic configuration

Well priced: Please reset the configuration to have the basic configuration.

Recommended configuration

Choose the CORETOs recommended configuration.

Windows Server 2022
Loading...

Processor

Details
  • Epyc 7002 Series (Rome)
  • Epyc 7003 Series (Milan)
  • Need more?   show more options
    Too much?   show less options

Memory

Details
  • Need more?   show more options
    Too much?   show less options

Mainboard

Details


Trusted Platform Module

Remote Management Interface on Board

IPMI 2.0, KVM over LAN, Virtual Media over LAN, Remote Power on/off and Reset, Remote Hardware Monitoring, Embedded Web-Server


Drives

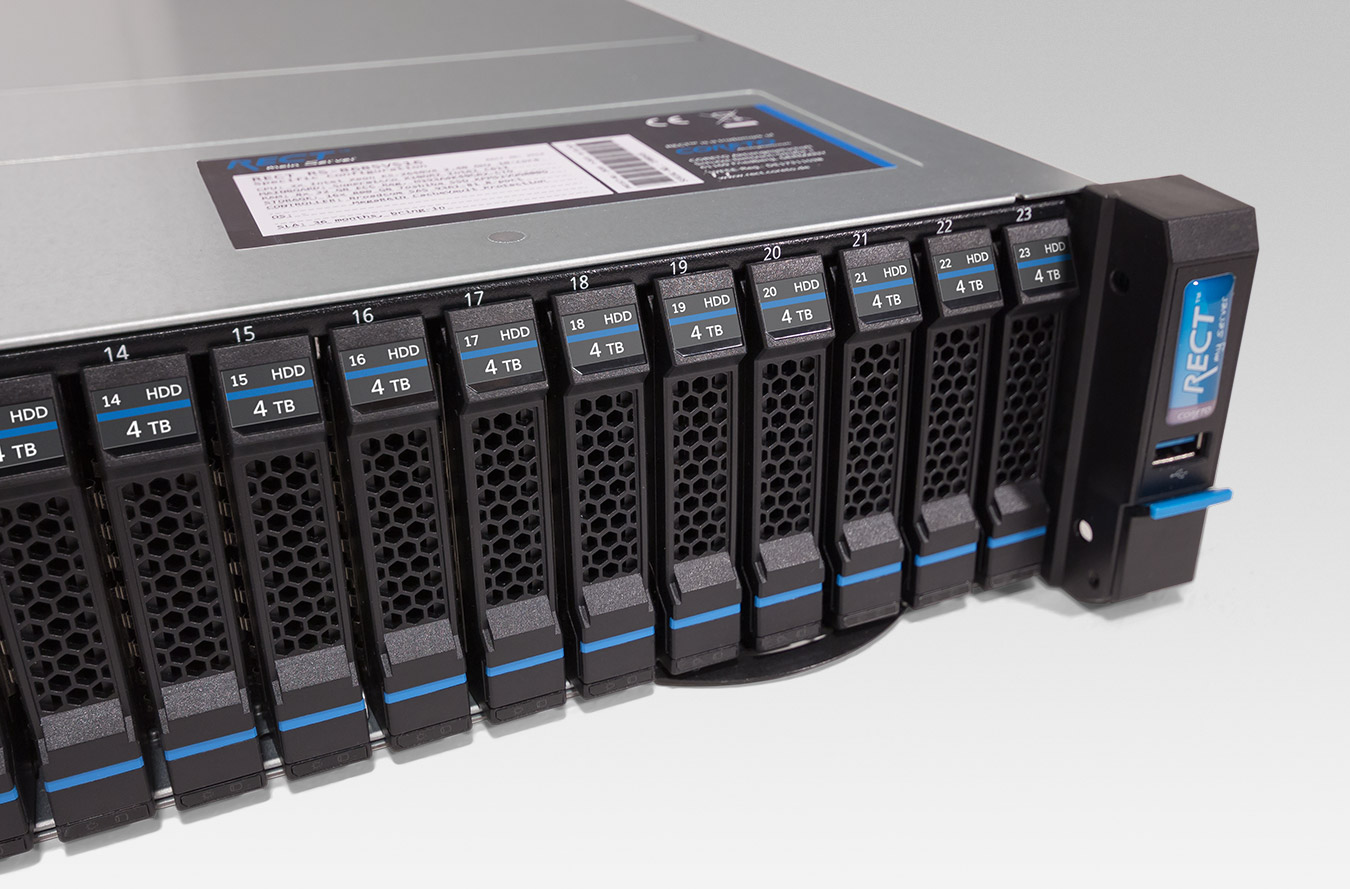

24 in hot-swap trays

    Details
    • Enterprise M.2 NVMe SSDs (PCIe 4.0)
      with optimized performance for read-intensive applications (1DWD)
    • Standard M.2 NVMe SSDs (PCIe 4.0)
    • Need more?   show more options
      Too much?   show less options
    Details
    • Enterprise SSDs with optimized performance for read-intensive applications
    • Enterprise SSDs with optimized performance for read and write intensive applications (Mixed-Use)
    • Need more?   show more options
      Too much?   show less options
    Details
    • Enterprise SSDs with optimized performance for read-intensive applications
      (ERP, CRM, Data Warehouse, File Server, Database Analytics, Video Streaming)
    • Enterprise SSDs with optimized performance for read and write intensive applications (Mixed-Use)
      (Databases, OLTP, Financial Transactions, E-Commerce, E-Mail / Messaging, Virtual Environments)
    • Need more?   show more options
      Too much?   show less options
    Details
    • Enterprise SAS HDD
    Details
    • Disk on Module
      SATA DOMs (Disk On Module) are small flash modules that can be connected directly to the SATA port of the mainboard. They are perfectly suited for use as boot drives or OS installation devices.

    Controller

    Details
    • Host-Bus-Adapter (HBA)
      Ideal for Software-Defined-Storage solutions requiring highest bandwidth, lowest latency and highest I/O performance.
      Software-RAID (to be configured and managed within the installed operating system).



    • RAID-Controller
      Ideal for 12 Gbps performance-hungry systems demanding high I/O transaction and high bandwidth processing without compromising maximum data protection.





    • Need more?   show more options
      Too much?   show less options

    Controller Cache Protection

    Short-term data storage to protect data in RAID-Cache in case of power outage.

    RAID configuration



    NVMe SSD cards

    Details
    • Optimized performance for read and write intensive applications

    Network



    Details





    Details






    Details




    • Copper patch cable (RJ-45), Cat.6A, 500MHz, halogen free
      Patch cable in the highest quality for a professional cabling in Gigabit and 10 Gigabit range (up to 100m).
      Cable sheath halogen free, full copper core, S/FTP (PiMf) 4x2xAWG26/7, gold plated contacts.
      For use in data centers and server racks

    Case

    Details

    Mounting




    Front Bezel

    Power supply



    Uninterruptible power supply (UPS)

    Protected from power interruptions?
    Choose from a wide variety  RECT Accessories - UPS

      Hot-Swap Tray Kit for SSDs (rear)

      The Hot-Swap-Kit is perfect for use with system SSDs. It is connected with the internal controller of the mainboard.


      Additional SSDs

      The additional SATA SSDs are mounted inside the hot-swap kit

      Details
      • High performance data according to IOPS, lower TBW values. Optimized performance for read-intensive applications.
      • Excellent performance combined with very high endurance. Optimized performance for read and write intensive applications
      • Need more?   show more options
        Too much?   show less options

      Microsoft Hyper-V pre-installation

      Installation of Microsoft Hyper-V usind the free license. Server Core Edition is being installed. You can manage Hyper-V Server by using Windows PowerShell locally or remotely, or by running Hyper-V Manager on a remote computer or server.

      Operating System

      The selected Microsoft operating system includes 30 days installation support, by phone or email.
      Further Microsoft editions plus Microsoft Open Licenses can be found under RECT Accessories. Further language editions on demand.

      language:

      Details

      • Microsoft Windows Server 2022






      • License Hints for Windows Server 2019/2022

        For correct licensing of the Standard Edition and Datacenter Edition with the chosen precessor equipment – - – a core license is required.
        (Show more details regarding virtualisation licensing)
      • Need more?   show more options
        Too much?   show less options

      Additional Core Licenses for Windows Server 2022

      To license more cores than provided by the 16-core or 24-core base license.

      Microsoft Server Applications

      Each license covered by Software Assurance (SA) entitles you to upgrade to the latest version. Each active Server with Software Assurance allowss a passive-failover instance of the Server Application and an improved license mobility.

      Details




      Operating System CALs

      • Standard CALs for Device and/or User
        In addition to the server licenses, you need licenses for all clients accessing the server (Client Access Licenses). These CALs may be licensed by users (User CALs) or devices (Device CALs). A User CAL is recommended when a user accesses the server with different devices. A Device CAL is favourable when one device is used by different users to access the server. All CALs are downward compatible with earlier releases of Microsoft Server.
      • Remote Desktop Services CALs
        Required for the provision and use of Remote Desktop Services based on the number of users or devices accessing the service.


      • Microsoft SQL Server CALs




      • Microsoft Exchange Server CALs




      Backup - Software

      Details




      Service & Support Level

      Location:

      Details
      • Bring-In Warranty
        Technical support: by e-mail, effective support with initial operation (to be carried out within 30 days after delivery).
        Rapairs: components or the whole system will be repaired or replaced subsequently to reshipment, we will pay the costs for transport and logistics within 30 days after delivery.
      • Pick-Up Warranty
        Technical support: by phone and e-mail, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: pick-up and return service for replacement of defective components or the whole system. Components will be replaced in the form of an advanced warranty replacement with guaranteed express delivery.
      • On-Site (3BD) Warranty
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within three business days for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.
      • On-Site (NBD) Warranty
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within the next business day for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.

      Case

        RECT™ RS-8637MR24

        €
        Main configuration
        3,025.00
        Configuration:
        Complete Configuration
        Current price


        Main configuration: 3,025.00 €
        Complete Configuration: 0,00 €
        Current price: 0,00 €   (Plus VAT)
        RECT-ID: 2586
        Last update: 21.11.2024
